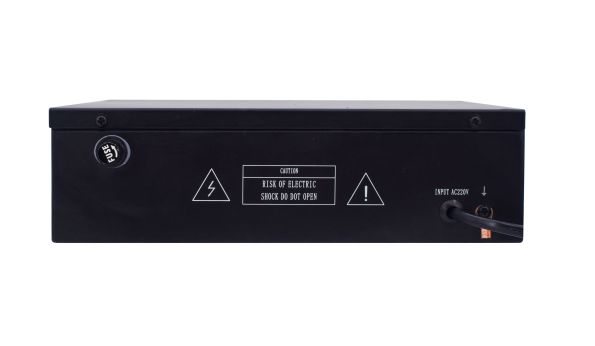

Yucoo 72V 10A Battery Charger power charger

USD100-210

Input Voltage

AC220V AC±15%,50/60Hz

Equal voltage

87VDC

Output Power

720W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product name:: battery charger

Model Number:: YK-CD7210

Equal voltage:: 87VDC

Floating voltage:: 81VDC

Charge current:: 1-10A adjustable

AC/DC compatible input:: AC220V AC±15%,50/60Hz

Charge process:: Constant current—(constant voltage) equal charge reduce current—(constant voltage) float charge

Efficiency:: ≥86％

MTBF:: ≥50000h

NW:: 4.5kg

Product Description

1.Advanced IC and components can ensure reliability and stability

2.Charge battery strictly according to Charging Curve.

3.The charging process is “(preset) constant current→(reach to equal charge constant voltage value)constant voltage reduce current→(automatic switch)float charge”. With strongpoint such as fast speed, high efficiency, unattended, non over charge etc

4.The charging current of 48V 100A auto battery charger is about 1-100A Constant adjustable. When in constant current charging status, the current is constant. No need manual adjustment.

5.AC wide range of input

6.Intelligent temperature controlled fan and over temperature automatic shut off protection.

7.Output short circuit protection and polarity reverse protection.

8.Suitable for assistant start-up power supply and complementary charge power supply such as car or generator etc.

Product Parameters

Product name	battery charger
Model	YK-CD7210
AC/DC compatible input	AD220V AD±15%, 50/60Hz
Charging current	1-10A adjustable
Charging process	Constant current—(constant voltage) equal charge reduce current—(constant voltage) floating charge
Equal voltage	87VDC
Floating voltage	81VDC
Working temperature	(-10~45)℃
Store temperature	(-20~70)℃
Related humidity	90%
Atomospheric pressure	(70~106)kPa
Dimension	253W68H268Dmm
Weight	4.5Kg
Efficiency	≥86%
Power factor	≥0.85
Input to shell	≥AC1500V
Input to output	≥AC1500V
Output to shell	≥AC500V
MTBF	≥50000h
Over heat shut off temperature	(75~80)℃
