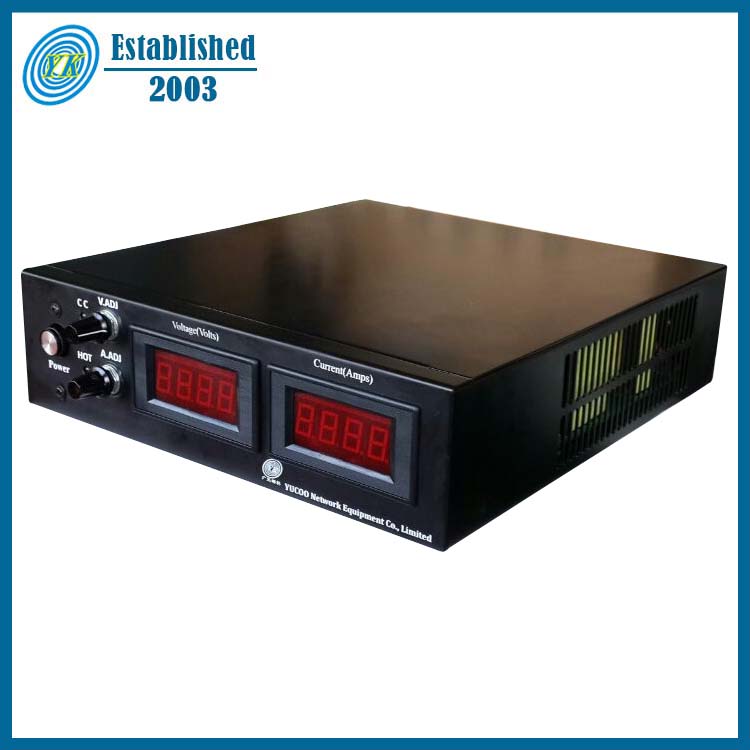

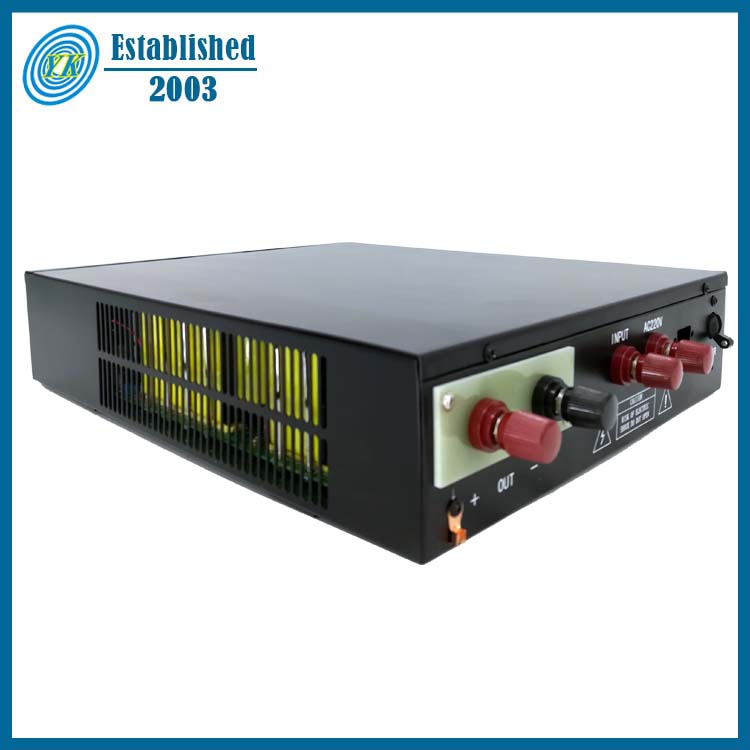

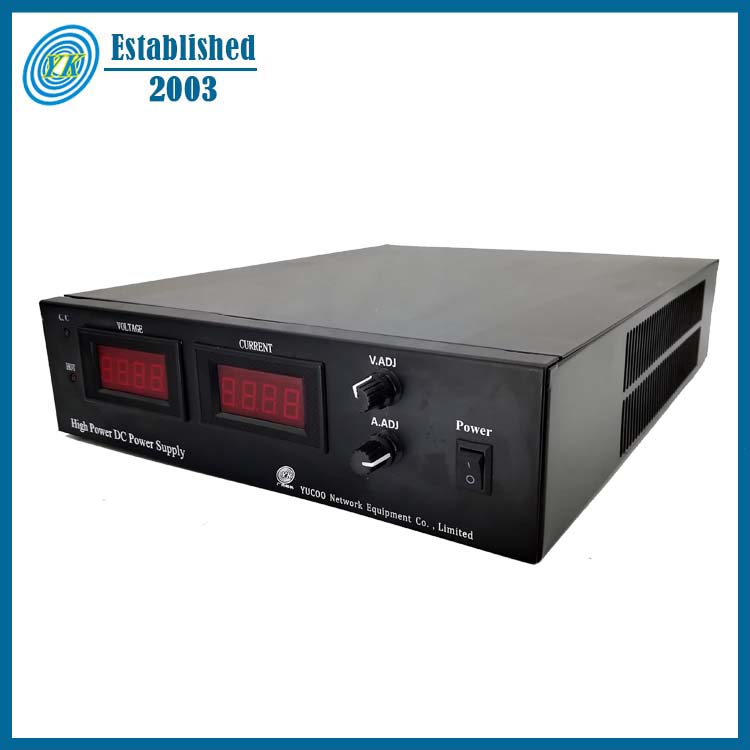

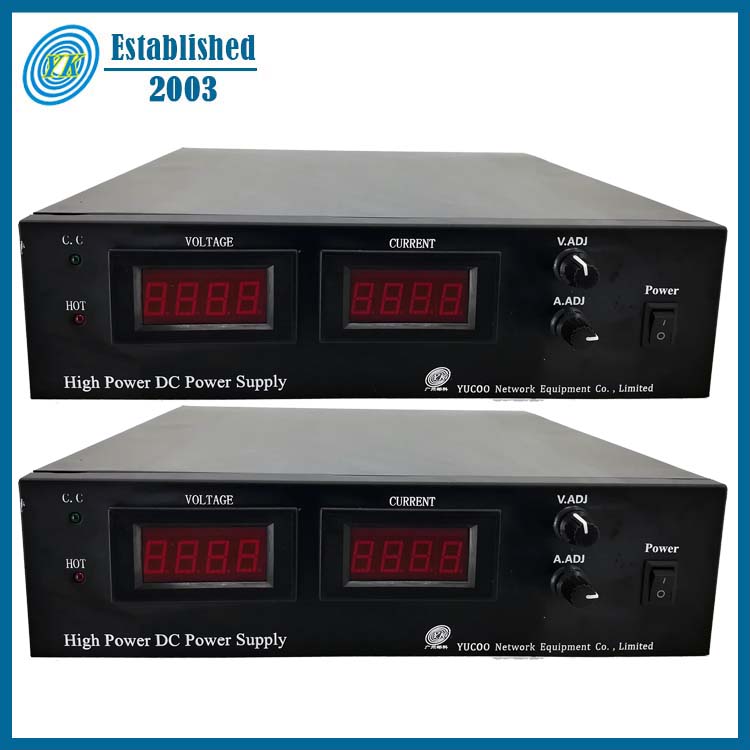

Yucoo 12V 200A Battery Charger Industry

USD600-700

AC compatible input

1 phase 220±15%VAC 50/60hz input 3phase 380±15%VAC 50/60hz input

Charge current

1-200A

Equal voltage

15.5V (on battery); 14.5V (sealed maintenance free batteries); Please specify when you order

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product name:: battery charger

Model Number:: YK-CD12200

AC compatible input:: 1 phase 220±15%VAC 50/60hz input 3phase 380±15%VAC 50/60hz input

Charge current:: 1-200A

Equal voltage:: 15.5V (on battery); 14.5V (sealed maintenance free batteries); Please specify when you order

Floating voltage:: 13.5VDC

Related humility:: 90%(40±2°C)

Efficiency:: ≥86%

Dimension:: 253(W) *68(H)*268(D)mm

NW:: 5kg

Features of automotive battery charger:

1. Advanced IC and components can ensure reliability and stability

2.Charge battery strictly according to Charging Curve.

3. The charging process is (preset) constant current→(reach to equal charge constant voltage value)constant 4. voltage reduce current→(automatic switch)float charge

5. With strongpoint such as fast speed, high efficiency, unattended, non over charge etc

6. Charging current: 2-20A adjustable. When in constant current charging status, the current is constant. No need manual adjustment.

7. Intelligent temperature controlled fan and over temperature automatic shut off protection.

Specifications of automotive battery charger:

Item		Capability parameter
Model (YK-CD Series)		YK-CD12200
Charge current		1-200A
AC compatible input		1 phase 220±15%VAC 50/60hz input 3phase 380±15%VAC 50/60hz input
Equal voltage		15.5V (on battery); 14.5V (sealed maintenance free batteries); Please specify when you order
Floating voltage		13.5VDC
Environment	Working temperature	(-5~45)°C
	Store temperature	(-20~70)°C
	Related humidity	90%(40±2°C)
	atmospheric pressure	70kPa -106kPa
Product Dimension & NW		253(W) 68(H)268(D)mm, NW 5kg
Packing Dimension		333(W) 140(H)358(D)mm, GW 6.2kg
Efficiency		≥86%
Power factor		≥0.85
Insulating strength	Input to shell	≥AC1500V
	Input to output	≥AC1500V
	Output to shell	≥AC500V
MTBF		≥50000h
Over heat shut off temperature		(75~80)°C
Apply for		Charge for all kind of lead acid batteries
