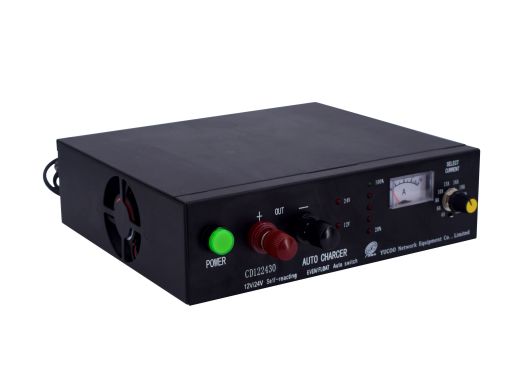

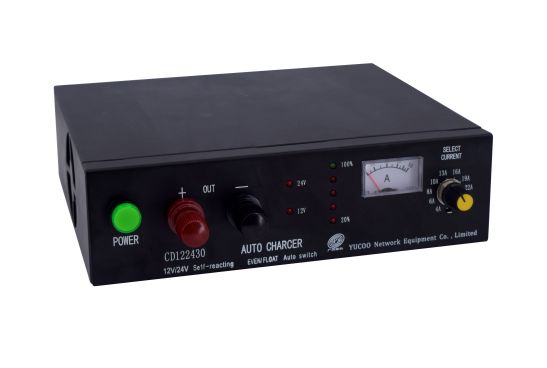

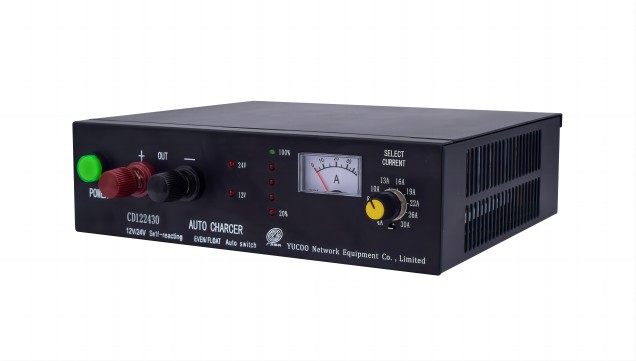

Yucoo 36V 30A Battery Charger Industry

USD215-298

Input Voltage

220Vac±15%

Output

36V/30A

Output Power

1080W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product name:: battery charger

Model Number:: YK-CD3630

Float Charging Voltage:: 41.4V

Equal Charging Voltage:: 44.1V

Power:: 1080W

Suitable for:: Lead Acid battery

AC compatible input:: 1 Phase 220V±15%VAC 50/60hz input

Efficiency:: ≥86％

Over-temperature protection:: (70~80)℃

MTTF:: ≥50000h

Product Description

1.Advanced IC and components can ensure reliability and stability

2.Charge battery strictly according to Charging Curve.

3.The charging process is “(preset) constant current→(reach to equal charge constant voltage value)constant voltage reduce current→(automatic switch)float charge”. With strongpoint such as fast speed, high efficiency, unattended, non over charge etc

4.The charging current of 48V 100A auto battery charger is about 1-100A Constant adjustable. When in constant current charging status, the current is constant. No need manual adjustment.

5.AC wide range of input

6.Intelligent temperature controlled fan and over temperature automatic shut off protection.

7.Output short circuit protection and polarity reverse protection.

8.Suitable for assistant start-up power supply and complementary charge power supply such as car or generator etc.

Product Parameters

Product name	battery charger
Model	YK-CD3630
AC/DC compatible input	AD220V AD±15%, 50/60Hz
Charging current	1-30A adjustable
Charging process	Constant current—(constant voltage) equal charge reduce current—(constant voltage) floating charge
Equal voltage	44.1VDC
Floating voltage	41.4VDC
Working temperature	(-10~45)℃
Store temperature	(-20~70)℃
Related humidity	90%
Atomospheric pressure	(70~106)kPa
Dimension	253W68H268Dmm
Weight	4.5Kg
Efficiency	≥86%
Power factor	≥0.85
Input to shell	≥AC1500V
Input to output	≥AC1500V
Output to shell	≥AC500V
MTBF	≥50000h
Over heat shut off temperature	(75~80)℃
