50hz to 60hz frequency converter hot sale frequency converter

903.17-935USD

AC input

Single-phase 220VAC 50Hz/60Hz

AC output Phase

Single-phase

Frequency

47Hz~70Hz、50Hz、60Hz、400Hz(optional )

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Model (YK-BP):: YK-BP8002

Output capacity (KVA):: 2KVA

Circuit mode:: IGBT/PWM pulse width modulation mode

AC input:: Single-phase 220VAC 50Hz/60Hz

AC output Phase:: Single-phase

AC output Voltage:: 0~150V

AC output Voltage:: 151~300V

Frequency:: 47Hz~70Hz、50Hz、60Hz、400Hz(optional )

Dimensions (cm):: 43*18*47CM

Weight(Kg):: 37KG

Product Name:: Factory Manufacturer low price 50hz to 60hz frequency converter hot sale frequency converter

Warranty:: 1 Year

Color:: silvery

Product Description

Programmable dynamic output voltage

High precision frequency stabilizing and voltage stabilizing, key-press quick

Adjustment voltage and frequency

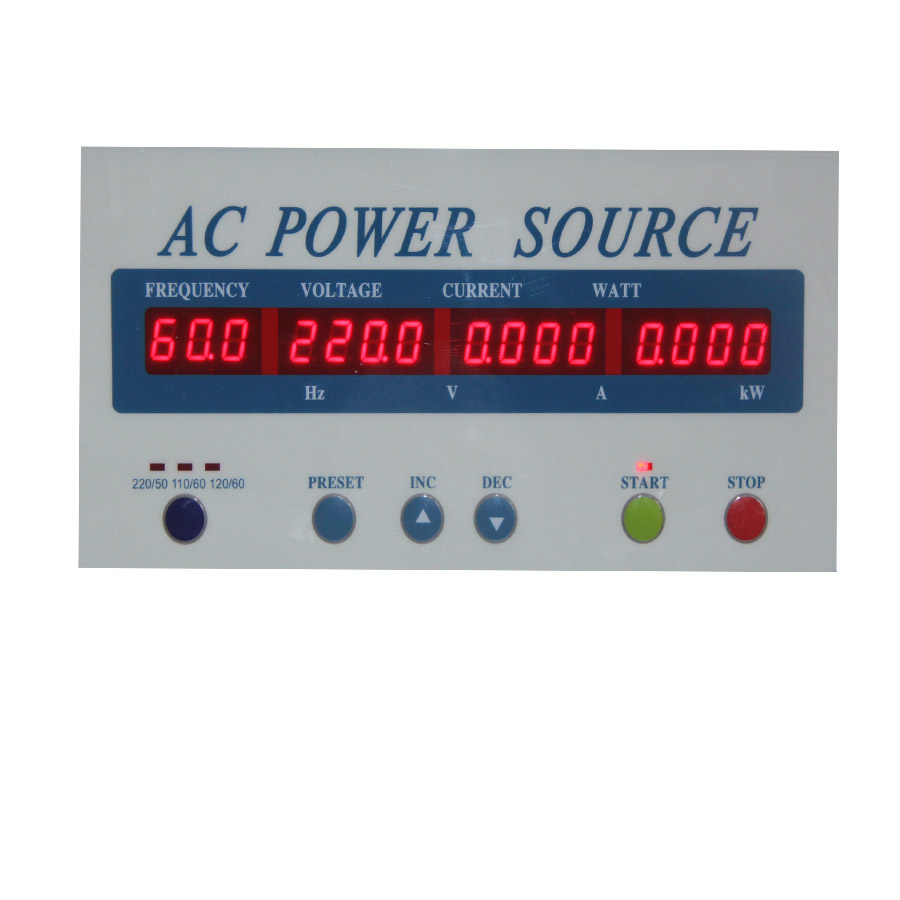

High precision display: voltage, current, frequency and active power

Unique time setting function, control output time 0~16 hours adjustable

Unique voltage frequency group shortcut output mode 220V/50Hz, 110V/60Hz and 120V/60Hz

Output frequency: 47～63Hz(400Hz optional)

Output voltage: 0~300V can adjust and simulate voltages from all countries in the world

It has multiple protections of overvoltage, over current, overload, over temperature and alarm function

Product Parameters

Model (YK-BP)			YK-BP 8001	YK-BP 8002	YK-BP 8003	YK-BP 8005	YK-BP 8006	YK-BP 8010
Output capacity (KVA)			1	2	3	5	6	10
Circuit mode			IGBT/PWM pulse width modulation mode
AC input			Single-phase 220VAC 50Hz/60Hz
AC output	Phase		Single-phase
	Voltage	Low range	0~150V
		High range	151~300V
	Frequency		47Hz~70Hz、50Hz、60Hz、400Hz(optional )
	Max current	Voltage low range	8.4	16.8	25	42	50		84
		Voltage high range	4.2	8.4	12.5	21	25		42
Frequency stability rate			≤±0.1%
Load voltage stabilizing rate			≤±0.5%
Waveform distortion degree			≤2%(resistance load)
Response time			≤2ms
Indication resolution	Digit frequency		4 digits display, resolution 0.1Hz
	Digit voltage		4 digits virtual value display, resolution 0.1V
	Digit current		4 digits virtual value display, resolution 0.01A
	Digit power		4 digits virtual value display, resolution 1W
Protection			overvoltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection and alarm device
Cooling			Forced fan cooling
Security regulation	Inslation resistance		500VDC/200MΩ
	Compression resistance insulation		1800VAC/5mA/1min
Working temperature			0℃~45℃
Working humidity			Relative 0～90%（ non-coagulation state ）
Dimensions (cm)			431844	431847	438552				557452
Weight(Kg)			32	37	66	68	80		145

Details Images

How to choose the right model of frequency converter YUCOO Manufacture?

Answer:

Please check below table and find the different service in different specification

For 3 phase output , it should be choose YK-BP83 Series

For 400hz output , should be choose YK-BP88 Series, as YK-BP80 Series and YK-BP81 Series 400hz output did not support long time operating

If the frequency converter should be working in vessel, please let us know before purchase

If you can not choose the right one, please tell us detail for your application then we can recommend the right model for you

Model	Input voltage	Output voltage	AC Input frequency	AC output Phase voltage	Output frequency	Output capacity	Output adjust type
YK-BP81 Series	1phase/3 phase	1 phase	50/60hz	0-150V 0-300V	50/60hz, 45-70hz, 400hz option	0-200kva	Knob type
YK-BP80 Series	1phase/3 phase	1 phase	50/60hz	0-150v 151-300v	47-63hz 220v/50hz, 110v/60hz, 120v/60hz	0-200kva	Press key type
YK-BP83 Series	1phase/3 phase	3 phase	50/60hz	0-150V 0-300V	50/60hz, 45-70hz, 400hz option	0-600kva	Knob type
YK-BP88 Series	1phase/3 phase	1phase/3 phase	50/60hz	0-150V 0-300V	400hz for military or aircraft	0-600kva	Knob type
