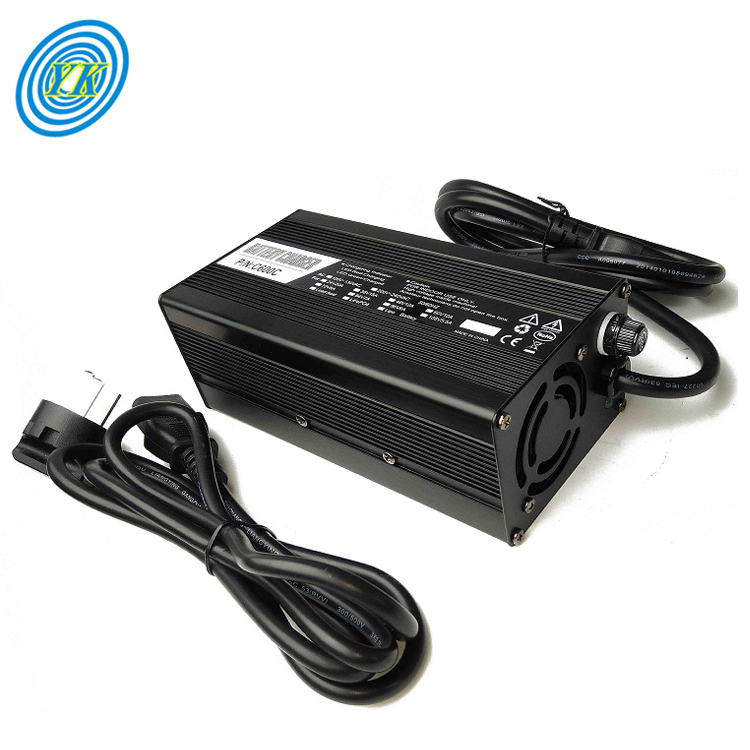

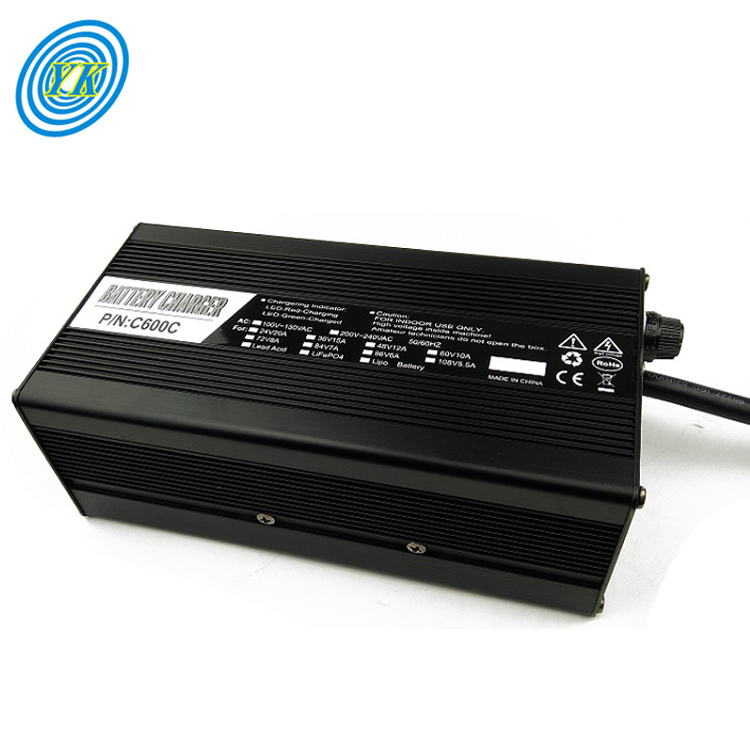

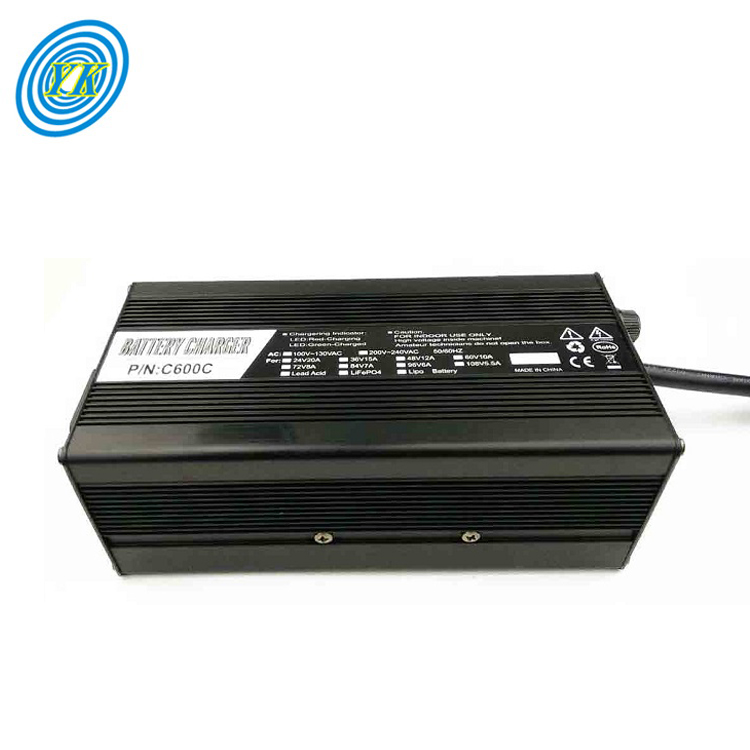

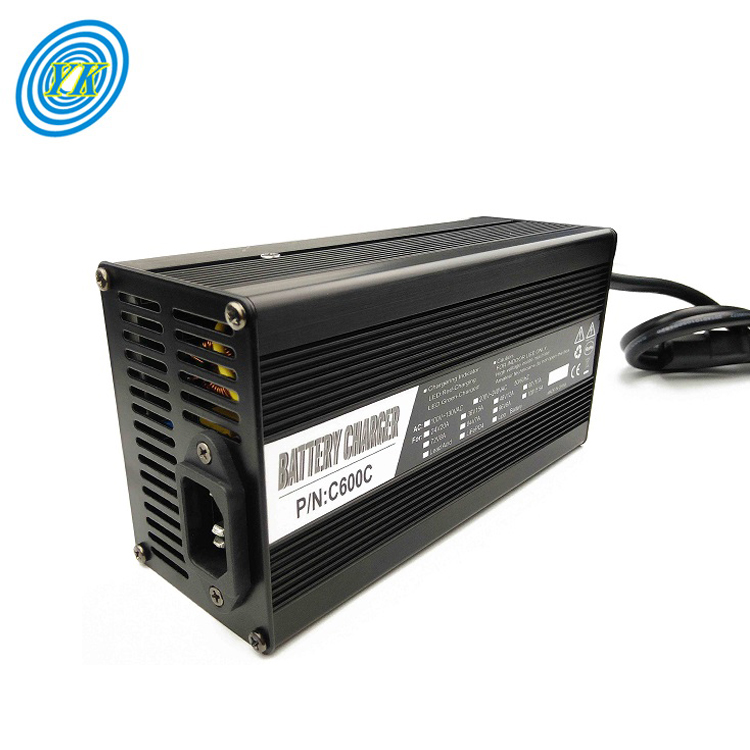

YUCOO 220VAC to 72VDCLipo LiFePO4battery charger for home

USD27.8-33.2

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Product description

Most of the traditional charger and simple charger are made up of industrial frequency transformer and rectifier circuit (silicon controlled rectifier (SCR)). Even use the silicon controlled rectifier to adjust the AC mains supply to charge battery. Though this circuit is simple, but it has disadvantage:

A. Big volume and high weight, not convenient for transportation and use

B. Lacking protection function, bad reliability

C. Must manual adjust charge current, difficult to full charge and avoid over charge the battery.

D. Silicon controlled rectifier adjusts the AC mains supply to charge battery directly. Then there is not isolation with AC mains supply which is dangerous to get an electric shock. And it will damage the AC mains supply waveform.

Advantage

1. Short-circuit protection: output current will cut off automatically when short-circuit.

2. Overload protection: Output Current Will Be Limited Automatically When Overload.

3. Reverse polarity protection: it will shut down until fuse or the fault removed.

4. 3-stage charging mode: CC, CV and trickle (or Cut off) .

5. Long lifetime: In the MTBF test, it makes more than 30,000 POH (power on hours) ,which means about 10 years if it work 8 hours every day.

6. LED Meter available: Show Charging Voltage and Charging Current.

7. All kinds of production has passed the CE certification and ROHS.

Efficiency: 94%( full capacity).

Product parameter

Brand	YUCOO
Model Series	YK-CD XX YY XX--Output Voltage; YY--Output Current
Model list	YK-CD1215	YK-CD2410	YK-CD366	YK-CD485	YK-CD604	YK-CD723.4
Input Voltage	1 phase 200-240Vac Input
Frequency	50/60hz
Output Voltage	12V	24V	36V	48V	60V	72V
Output Current	15A	10A	6A	5A	4A	3.4A
Rate Power	180W	240W	216W	240W	240W	244.8W

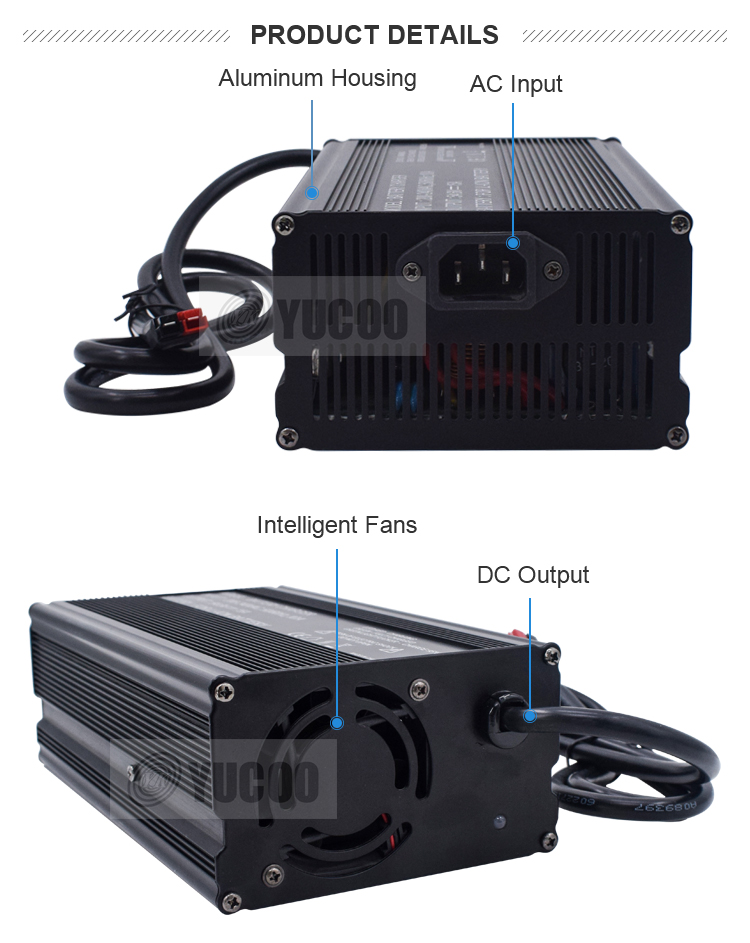

Shell	Aluminum Alloy Shell
N.W/GW	1kg/1.5kg
Product dimension	1359050mm
Package dimension	502228cm/12pcs
Suitable battery Type	Lead Acid / LiFePO4 /Li-ion Lipo battery voltage is 4.2V LiFePO4 battery voltage is 3.65V Lead acid battery voltage is 14.7V
Equal voltage (Lead acid)	14.7V	29.4V	44.1V	58.8V	73.5V	88.2V
Float voltage (Lead acid)	13.8V	27.6V	41.4V	55.2V	69V	82.8V
LiFePO4/3.65V Charge voltage	14.6(4s)	29.2(8s)	43.8(12s)	58.4(16s)	73(20s)	87.6V(24s)
Lipo/4.2V Charge voltage (S-Connect in series)	12.6(3s) 16.8(4s)	25.2(6s) 29.4(7s)	42/4.25(10s)	50.4(12s) 54.6(13s) 58.8(14s)	63.0(15s) 67.0(16s) 71.4(17s)	84V(20s)
Charging Principle	Full automatic transition CC,CV and Float/Cut-off
Charging Time	Cut-off point for Li battery is 5% of CC and it can be set between 3-10%.（charging time:4 hours）
Charging Time	Transition for Lead acid charger is 20% of CC.（charging time:6-8 hours）
High-Efficiency	≥90%
MTBF	≥50000h
Dielectric Strength	Input to shell ≥AC1500V
	Input to output ≥AC1500V
	Output to shell ≥AC500V
Operating Temperature	-20℃~50℃
Store Temperature	(-40～70)℃
Related humility	90％(40±2℃)

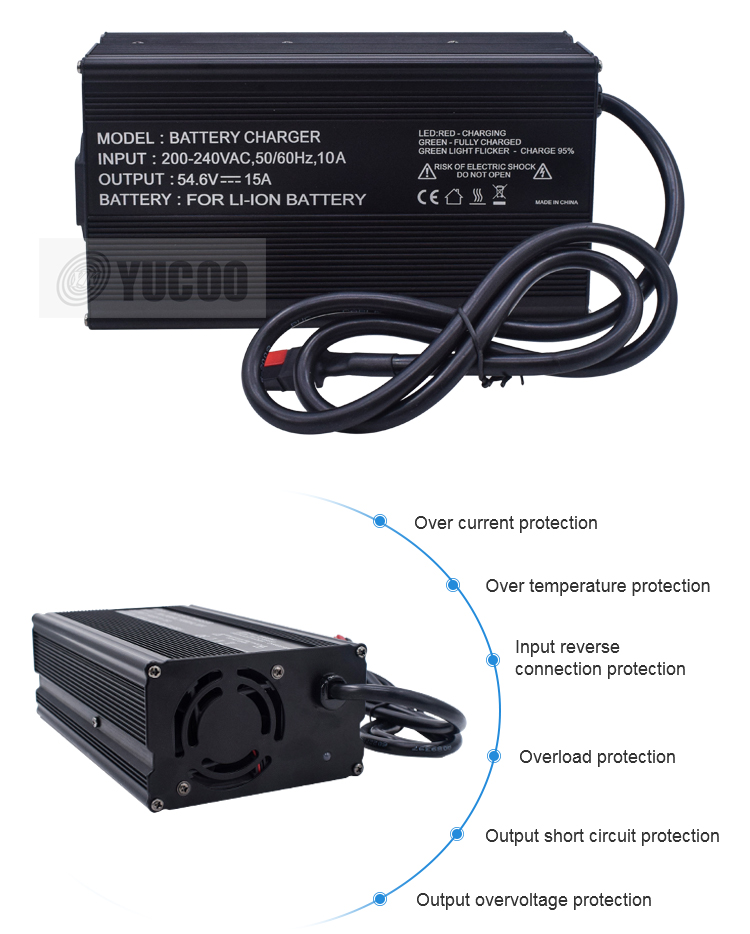

Protection Function	Over voltage / Over temperature / Over current/Short circuit and Reverse polarity Protect
Display	Two LED indicators
Advantage	Light/Small/Stable/Safe

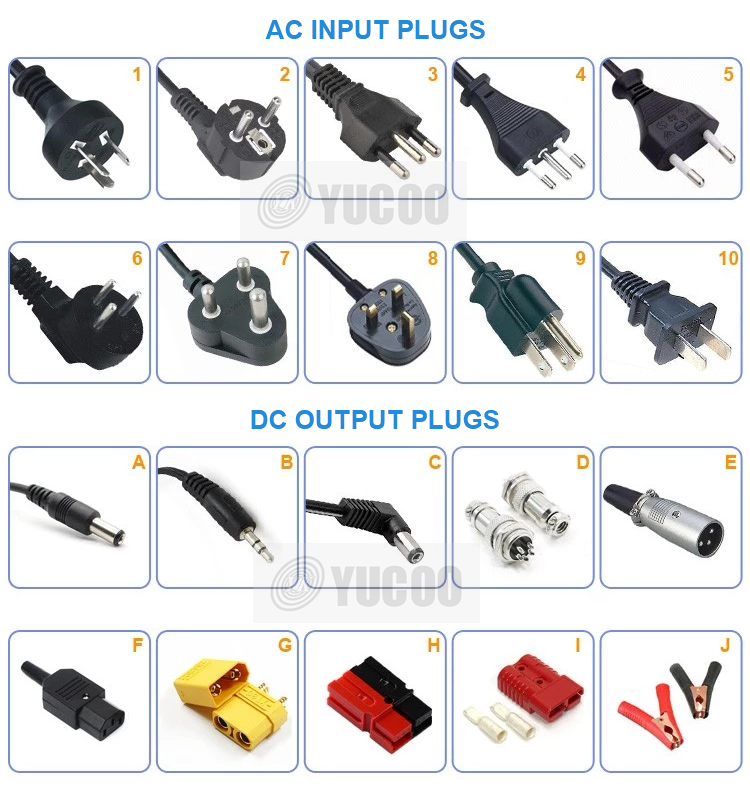

AC Plug	Accept any plug base on your request
Warranty	1 year Warranty
