48V DC or AC two channels input 20chs power distribution box price
150-300
Customized logo (Min. Order: 300 Sets)
Customized packaging (Min. Order: 300 Sets)
Graphic customization (Min. Order: 300 Sets)
Trade Assurance
On-time Dispatch Guarantee
Refund Policy
Quick Details
- Product Name:
- Power Distribution Unit
- Warranty:
- 1 Year
- Application:
- Telecom, BTS, Mobile, Unicom, electric power, army, public security
- Input channels:
- 1 channel / 2 channels for option
- Input voltage:
- 48/24/220/110VDC and 48/24/220/110VAC for option
- Input Current:
- 10A,16A, 32A, 63A ,100A,125A circuit breaker/air switch for option
- Output channels:
- Multi-channels output (max 20chs)
- Output voltage:
- 48/24/220/110VDC and 48/24/220/110VAC for option
- Output Current:
- 10A,16A, 32A, 63A ,100A,125A circuit breaker/air switch for option
- Alarm:
- With/without alarm function for operatio
- Material:
- iron
- Dimension:
- 485 mm *135 mm *80 mm
Product Description

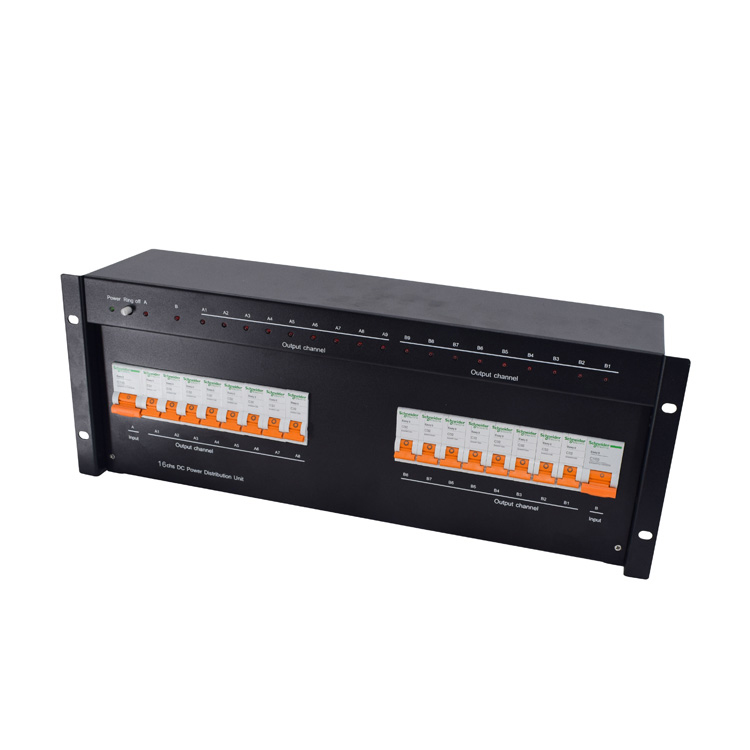

1. YKDPZ-B PDU is a DC power distribution system module with 19inch standard structure, small size , easy to install and use.

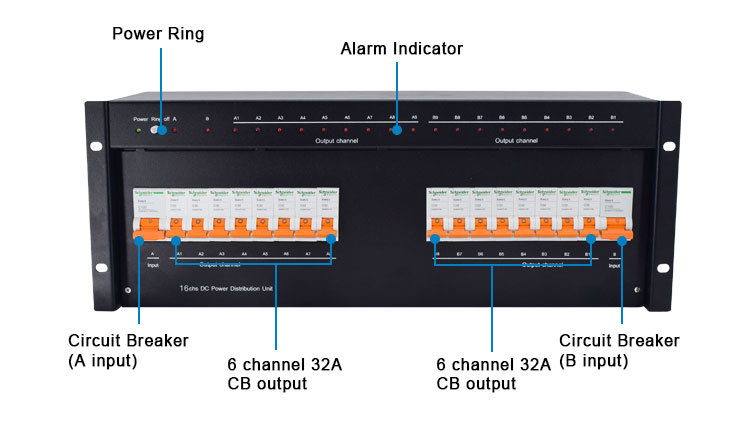

2. There is A-B 1ch/2chs input, multi-channels output (max 20chs).
3. Visual-aural alarm when there is failure. LED display running status
4. PDU has excellent performance and reliable quality.
5. Its widely used in Telecom, BTS, Mobile, Unicom, electric power, army, public security, etc.
Product Parameters
Model | YKDPZ-B |
Input channels | 1 channel / 2 channels for option |
Input voltage | 48VDC/24VDC/220VDC/110VDC or 48VAC/24VAC/220VAC/110VAC For option |
Input Current | 10A,16A, 32A, 63A ,100A,125A circuit breaker/air switch for option |
Insulation resistance | ≥30MΩ |
Insulating intensity | Input—housing AC1000V,50Hz,1minute Output-housing AC1000V,50Hz,1minute |
Output channels | 12 channel /16 channel/ 18 channel /20 channel for option |
Output voltage | -48VDC/24VDC/220VDC/110VDC or -48VAC/24VAC/220VAC/110VAC For option |
Output Current | 10A,16A, 32A, 63A ,100A,125A circuit breaker/air switch for option |
Alarm | Visual-aural alarm signal. When there is any channel is failed, Red LED ON and buzzer sounds. With/without alarm function for operation |
Working environment | Working temperature :0℃~40℃ Related humility :≤90% (+20±5℃) atmospheric pressure:70Kpa~106Kpa |
Dimension | 85mm(L)*175mm(D)*85mm(H) |
Weight | 6.0Kg |
Packing: | 510mm*150mm*125mm, 5.5kg |

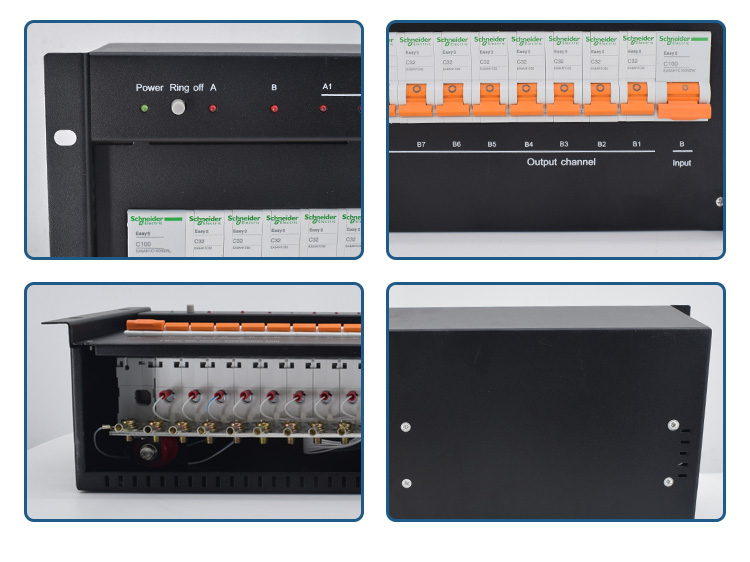

Product details
