Understanding Electroplating Power Supplies

Electroplating is a process that uses electric current to reduce dissolved metal cations so that they form a metal coating on an electrode. It is an essential process in various industries, such as electronics, jewelry, and automotive. The power supply plays a vital role in this process.

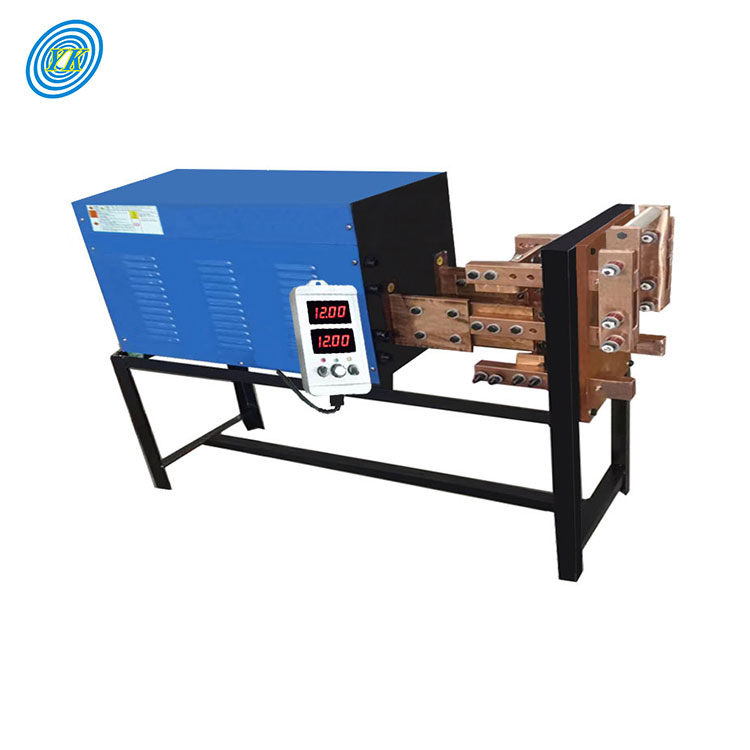

The electroplating power supply, also known as a rectifier, converts AC power to DC power, providing the required current and voltage for the electroplating process. These power supplies can be adjusted to deliver the desired current and voltage, allowing for precise control of the electroplating process.

There are several types of electroplating power supplies:

• Switch Mode Power Supplies (SMPS): These are lightweight and compact, offering high efficiency and accuracy. They operate by switching a power transistor between saturation (full-on) and cut off (completely off), minimizing wasted energy.

• Silicon Controlled Rectifier (SCR): These are more robust and durable, offering high power output. They control power by conducting current in one direction and blocking it in the other.

• Tap Switch Power Supplies: These are more simplistic and cost-effective. They control power by mechanically connecting different points on a transformer to adjust the voltage.

The choice of power supply depends on the specific requirements of the electroplating process, such as the type of metal being plated, the size of the parts, and the desired finish.
