Mastering DC Power Conversion: From Basics to Advanced Techniques

Understanding DC-DC Converters: An Essential Guide

In this guide, we will focus on YUCOO's DC-DC converters. YUCOO is a leading manufacturer in the power supply industry with over 20 years of experience, specializing in the design and production of DC-DC converters. The company offers a wide range of DC converters, including Buck, Boost, and Isolated converters, catering to various applications and industries such as consumer electronics, automotive systems, and renewable energy solutions.

YUCOO's Buck DC/DC converters are designed to step down voltage, making them particularly useful in applications like bus systems, where they ensure a stable and reliable power supply. The company's Boost DC/DC converters, on the other hand, are designed to step up voltage, which is essential in battery-operated devices where the battery voltage needs to be boosted to power certain components.

Moreover, YUCOO's isolated DC/DC converters are equipped with an electrical barrier between the input and output, providing isolation that protects sensitive components from electrical noise or voltage spikes.

In conclusion, YUCOO's commitment to quality, innovation, and customer satisfaction, as well as their diverse range of products, makes them a reliable and leading choice in the DC/DC converter industry.

Efficiency Improvement Techniques in DC Power Conversion

Efficient power conversion is a critical aspect of many electronic systems, and DC (Direct Current) power conversion plays a pivotal role in this process. Yucoo, a leading power supply manufacturer, has been harnessing advanced technologies to improve the efficiency of their DC power conversion products.

One of the key strategies employed by Yucoo to improve efficiency is the use of advanced power conversion technologies to minimize power losses and maximize energy conversion. This is particularly crucial in applications such as electric vehicle charging stations, where energy-efficient converters can significantly reduce power consumption.

Yucoo offers a wide range of DC converters, including Buck, Boost, and Isolated converters, each with its own unique efficiency improvement features. For example, Yucoo's Buck DC/DC converters are designed to step down voltage efficiently, ensuring a stable and reliable power supply in applications like bus systems. On the other hand, their Boost DC/DC converters are designed to step up voltage efficiently, which is essential in battery-operated devices where the battery voltage needs to be boosted to power certain components.

In addition to the use of efficient converter designs, Yucoo also employs advanced control techniques and careful circuit design to minimize noise, which can contribute to improved overall efficiency. Selecting high-quality components with low resistance and low power losses is another way that Yucoo ensures the efficiency of their DC power conversion products.

Moreover, Yucoo's isolated DC/DC converters are equipped with an electrical barrier between the input and output, providing isolation that protects sensitive components from electrical noise or voltage spikes, further enhancing the efficiency of the power conversion process.

In conclusion, Yucoo's commitment to harnessing advanced technologies and high-quality components, coupled with their innovative converter designs, has positioned them as a leader in efficient DC power conversion. As the world continues to evolve towards a more energy-efficient future, Yucoo's DC power conversion products will undoubtedly play a crucial role in this transformation.

Circuit Design Strategies for DC-DC Converters

When designing circuits for DC-DC converters, there are many factors to consider. This includes the type of converter being used (Buck, Boost, or Isolated), the desired efficiency, noise considerations, and the specific application requirements. One key aspect to consider is the use of high-quality components, as this can help to minimize noise and improve the overall performance of the converter. Additionally, advanced control techniques and careful circuit design can greatly enhance the efficiency and reliability of the converter.

YUCOO, a leading manufacturer in the power supply industry, has over 20 years of experience in the design and production of DC-DC converters. They offer a wide range of DC converters, including Buck, Boost, and Isolated converters, which cater to various applications and industries. YUCOO's Buck DC-DC converters and Boost DC-DC converters are designed to step down and step up voltage respectively, making them useful in a wide variety of applications.

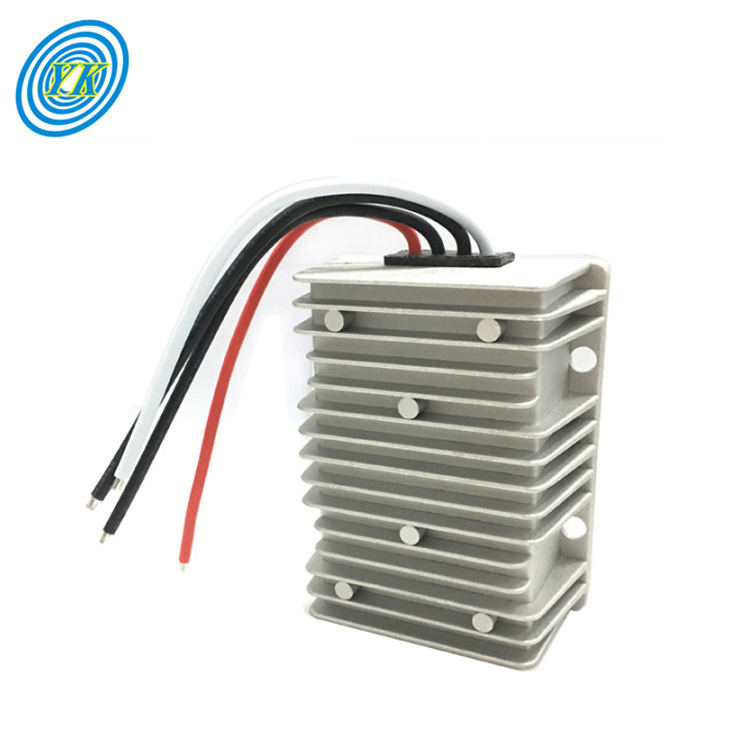

For instance, YUCOO's transformer buck DC/DC converter is designed to step down voltage from 48V to 12V with a 30A output. This converter is particularly useful in applications like bus systems, demonstrating YUCOO's commitment to developing specialized power supply solutions.

Furthermore, YUCOO's isolated DC/DC converters are equipped with an electrical barrier between the input and output. This feature provides isolation that protects sensitive components from electrical noise or voltage spikes. In addition to these, YUCOO also offers other types of converters, such as adjustable DC power supplies and bared board DC-DC converters.

In terms of circuit design strategies, YUCOO likely employs a combination of advanced control techniques for precise and flexible control of their DC/DC converters. These strategies may include the ability to dynamically adjust the output voltage in response to changes in load or input conditions.

In conclusion, when designing circuits for DC-DC converters, it's important to consider the type of converter, the desired efficiency, noise considerations, and the specific application requirements. Companies like YUCOO demonstrate how these considerations can be effectively integrated into the design and production of a wide range of DC-DC converters.

Voltage Regulation in DC Power Conversion: A Comprehensive Analysis

1. Introduction to Voltage Regulation in DC Power Conversion

Voltage regulation in DC power conversion is the process of maintaining a constant output voltage despite variations in the input voltage or load conditions. It's a necessary process in many electronic devices and systems to ensure they operate correctly.

2. The Importance of Voltage Regulation

The importance of voltage regulation comes from its role in preserving the functionality and lifespan of electronic devices and systems. An unstable voltage can lead to performance issues or even damage. Yucoo's DC power converters are designed with voltage regulation in mind, ensuring a stable output for various applications.

3. How Yucoo's DC Power Converters Achieve Voltage Regulation

Yucoo's DC power converters achieve voltage regulation through advanced circuit design and high-quality components. They offer a range of DC-DC converters, including the YKDD12S5** series, YKDD24S12** series, and YKDD3648S5** series, which are all designed to provide stable output voltages.

4. The Impact of Voltage Regulation on the Performance of Yucoo's DC Power Converters

Voltage regulation significantly impacts the performance of Yucoo's DC power converters. By maintaining a stable output voltage, these converters can reliably power various devices and systems, ensuring their proper operation.

5. Conclusion

In conclusion, voltage regulation is a crucial aspect of DC power conversion, and companies like Yucoo are at the forefront of this technology. With their range of DC power converters, Yucoo continues to provide reliable and efficient power conversion solutions for various applications.

Exploring the Impact of Inrush Current in DC Power Conversion

The inrush current in DC power conversion is a crucial factor to consider. When a power supply is initially turned on, the inrush current can be significantly higher than the steady-state current. This is because at the initial moment of power-up, the input capacitors are uncharged and present a low impedance path, drawing a large amount of current. This phenomenon can lead to several issues, such as blowing of fuses, tripping of circuit breakers, and even damage to components due to the high heat generated.

To mitigate the impact of inrush current, a control circuit can be implemented. This circuit can be designed using a single Metal–Oxide–Semiconductor Field-Effect Transistor (MOSFET) switch and some small passive elements. The circuit works by limiting the initial current surge when the power supply is first turned on, gradually allowing more current as the input capacitors charge up. This approach not only protects the power supply components but also ensures a smooth startup operation.

When we look at specific DC power conversion devices, for instance, the Yucoo power supply, the importance of managing inrush current becomes even more evident. Yucoo's DC power converters are known for their high efficiency and reliability. However, like any other power supply, they can be subjected to high inrush current during the initial power-up. Implementing an inrush current controlling circuit as described above can significantly enhance the performance and longevity of Yucoo power supplies.

In conclusion, managing the inrush current in DC power conversion is vital to ensure the smooth operation and longevity of the power supply equipment. By using appropriate control circuits, we can effectively mitigate the impact of inrush current and enhance the performance of power supplies such as those provided by Yucoo.
