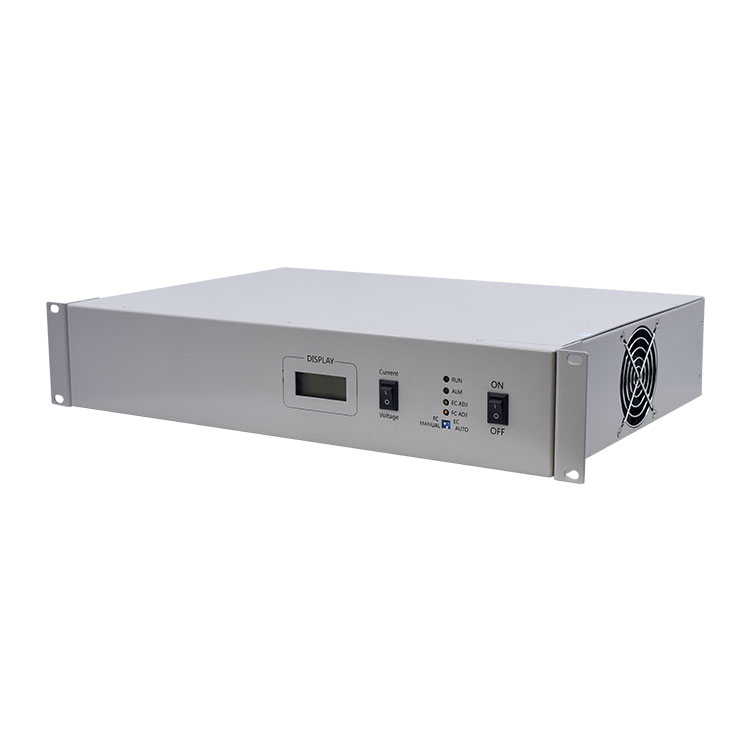

Comprehensive Guide to 19-Inch DC-DC Converters: Technology, Applications, and Design

19-inch DC-DC converters are a specific type of power converter that are commonly used in various applications, including computer power supplies, automotive electronics, and industrial machinery. These converters are designed to transform direct current (DC) from one voltage level to another, ensuring that electronic devices receive the appropriate power supply needed for their operation.

DC-DC converters play a crucial role in power electronics by enabling the efficient conversion of DC power. They are particularly important in systems where the input voltage does not match the voltage requirements of the components, such as in portable devices like laptops and smartphones. By stepping up or stepping down the voltage, DC-DC converters ensure that the device operates within its voltage tolerances, thereby preventing damage to the components and extending the life of the device.

The operation of a 19-inch DC-DC converter involves a series of electronic components that control the flow of current and the conversion of voltage. The key components of a DC-DC converter include a switch, which controls the flow of current, and a filter, which removes any unwanted noise or distortion from the output voltage. These components work together to convert the input voltage to a regulated output voltage, which is then used by the electronic device.

In practice, DC-DC converters are designed to be highly efficient, with efficiencies typically ranging from 70% to 95%. This efficiency is achieved through the use of switched-mode power conversion techniques, which minimize power loss and reduce the need for cooling. The use of high-frequency switching and pulse-width modulation (PWM) allows for precise control over the output voltage, which is crucial for maintaining the performance and reliability of the electronic device.

The history of DC-DC converters dates back to the early stages of semiconductor technology, where power conversion was achieved by converting DC to AC and then back to DC using transformers and rectifiers. With the advent of integrated circuits and solid-state components, the design and implementation of DC-DC converters have become more efficient and cost-effective, making them an indispensable part of modern power electronics.

Buck, Boost, and Buck-Boost Converters

• Buck converters are DC-to-DC power converters that reduce voltage from the source to the load by drawing a smaller average current. They are particularly efficient, often exceeding 90%, making them suitable for converting high-voltage power supplies to lower voltages required by devices such as USB, DRAM, and CPUs .

• Boost converters, on the other hand, are used to increase the voltage from the source to the load. They are often employed in applications where a higher voltage is needed, such as in battery-powered devices or solar chargers .

• The buck-boost converter is a versatile DC-to-DC converter that can either increase or decrease the voltage from the source to the load. This versatility makes it a popular choice for applications that require a wide range of output voltages .

SEPIC Converters and Their Applications

• SEPIC (Switched Energy Packet Injection Converter) converters are a type of DC-to-DC converter that can operate in both buck and boost modes. They are known for their high efficiency and wide input voltage range, which makes them suitable for a variety of power management applications .

• SEPIC converters are often used in battery-powered devices and renewable energy systems where they can provide a constant output voltage regardless of the input voltage fluctuations. They are also used in applications that require a wide range of output voltages, such as in electric vehicles or renewable energy systems .

• The use of SEPIC converters in such applications is advantageous because they can handle a wide range of input voltages and maintain a constant output voltage, which is crucial for the stable operation of electronic devices and systems .

Maximizing Power Conversion Efficiency

• High-efficiency DC-DC converters are essential for reducing energy costs and environmental impact.

• Efficient converters minimize power losses, leading to lower electricity bills, especially in high-demand environments.

• High-efficiency converters can also extend the lifespan of electronic devices by reducing heat generation, which is a major cause of wear and tear.

Thermal Management in DC-DC Converters

• The efficiency of a DC-DC converter is influenced by the amount of heat it generates.

• Converters with higher efficiency produce less heat, which can extend the durability of the converter and the devices it powers.

• The need for additional cooling systems is reduced with improved efficiency, which helps conserve energy and reduce environmental impact.

Optimizing Power Supply Systems

• The efficiency of a DC-DC converter is a critical metric for determining the performance of power supply systems.

• A highly efficient converter ensures that the majority of input energy is converted to output energy, minimizing energy loss.

• The efficiency of a DC-DC converter can vary based on factors such as input and output voltage levels, load current, and the quality of the converter's components.

Considerations for Efficient Power Supply

• When selecting a DC-DC converter, it's important to consider factors beyond efficiency, such as form factor, thermal management, and cost.

• Efficient converters contribute to energy-efficient practices and environmental sustainability.

• Understanding how to measure and identify the highest-efficiency converters in the market is essential for making informed decisions.

DC-DC converters have a broad spectrum of applications in various industries. They are integral to industrial automation systems, where they power and control various components, ensuring a stable and regulated power supply, which is crucial for the efficiency and reliability of industrial processes. In the automotive industry, DC-DC converters are used to convert high-voltage DC power from the traction battery to the lower voltages required by vehicle systems and components.

In the telecommunications sector, DC-DC converters are essential for powering communication devices, base stations, routers, and switches, facilitating voltage conversion and regulating the power supply to ensure reliable operation. In the military and aerospace domains, DC-DC converters are employed to regulate and convert power in avionics systems, satellite communication systems, military equipment, and radar systems, providing reliable power supply and voltage conversion in demanding environments.

Moreover, in renewable energy systems such as solar power and wind turbines, DC-DC converters are critical for optimizing power generation by converting and regulating the variable DC output voltage from solar panels or wind generators to match the required voltage level for grid integration or battery charging. Lastly, in data centers, DC-DC converters are used to regulate and distribute power to servers, networking equipment, storage systems, and cooling infrastructure, ensuring efficient power conversion, voltage regulation, and overall energy optimization.

These applications underscore the versatility and importance of DC-DC converters in modern technology, where they are used to manage and optimize power distribution across a wide range of devices and systems.

When designing and implementing DC-DC converters, several key considerations must be taken into account to ensure safety and optimal performance. These include:

• Insulation Ratings: It is crucial to select a DC-DC converter with appropriate insulation ratings to prevent electrical shocks and short circuits. The insulation grade should be high enough to withstand the operating conditions of the device .

• Safety Standards Compliance: DC-DC converters must meet specific safety standards to ensure they are safe to use. This includes adherence to standards such as EN60950-1 and UL60950-1, which dictate temperature limits and thermal insulation requirements .

• Thermal Management: Overheating is a common issue with DC-DC converters, especially those that convert high power levels. To prevent this, thermal management strategies such as heat sinks, thermal insulation, and effective heat dissipation methods must be incorporated into the design. This can involve using MOSFET transistors with lower static drain-to-source on-resistance or designing PCBs with wide parallel traces and numerous vias to facilitate heat dissipation 4.

• Power Electronics Design: The design process for DC-DC converters involves both hardware and software components. Hardware design includes selecting the appropriate components and arranging them to achieve the desired voltage conversion. Firmware development focuses on creating control algorithms to manage the converter's operation and optimize its performance .

• Package Selection: The choice of packaging for DC-DC converters can affect the device's overall size, mounting style, and thermal performance. Designers must select a package that fits the application's requirements and can accommodate the thermal management solutions needed to prevent overheating .

By addressing these design and safety considerations, engineers can create DC-DC converters that are not only efficient but also reliable and safe for use in a wide range of applications.
