Yucoo step up converter 12v to 24v 40a dc converter 40a mean well
USD 75-86.5
Customized logo (Min. Order: 300 Sets)
Customized packaging (Min. Order: 300 Sets)
Graphic customization (Min. Order: 300 Sets)
Trade Assurance
On-time Dispatch Guarantee
Refund Policy
Product Details
Quick Details
- Product Name:
- DC DC Converter
- Input voltage:
- 12V (10-16V)
- Output voltage:
- 24V
- Current:
- 40A
- Certificate:
- CE ROHS
- Protections:
- Over-current / voltage / load/temperature protection
- Warranty:
- 1 year
- Working temperature:
- -40 ~ +80°c
- Working humidity:
- 10% ~ 90%
- Size:
- 220*127*63mm
Product Description
1.Design meeting RoHS / CE
2.High efficiency: 94% ( @ 12V input )
3.Non-isolated between input and output
4.Internal capacitor: NCC & NICHICON (high reliability)
5.100% full load burn-in test
6.Over load, Over temperature and Over voltage protections
7.Waterproof level IP68
8.1 Year warranty
Product Parameters
| Product name | DC DC Converter |
| Model | YK-DD12S2440 |
| Input Voltage | 12 VDC |
| Voltage range | 10-16 VDC |
| Output Voltage | 24 VDC |
| Output Current | 40 Amps |
| Output Power | 960 Watts |
| Effciency | 94% |
| Working temperature | -40℃~+80℃ |
| Weight | 2.35KG |

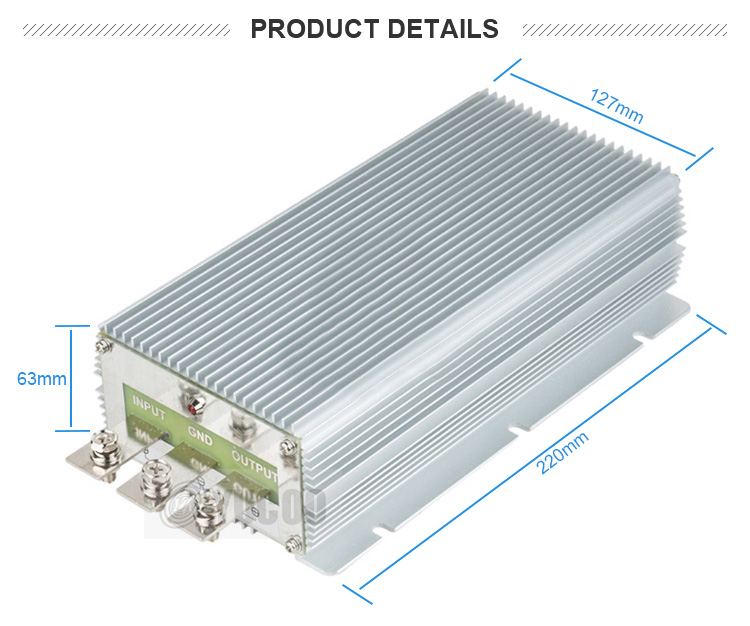

| Size | 220*127*63MM |
| Waterproof | IP68 |

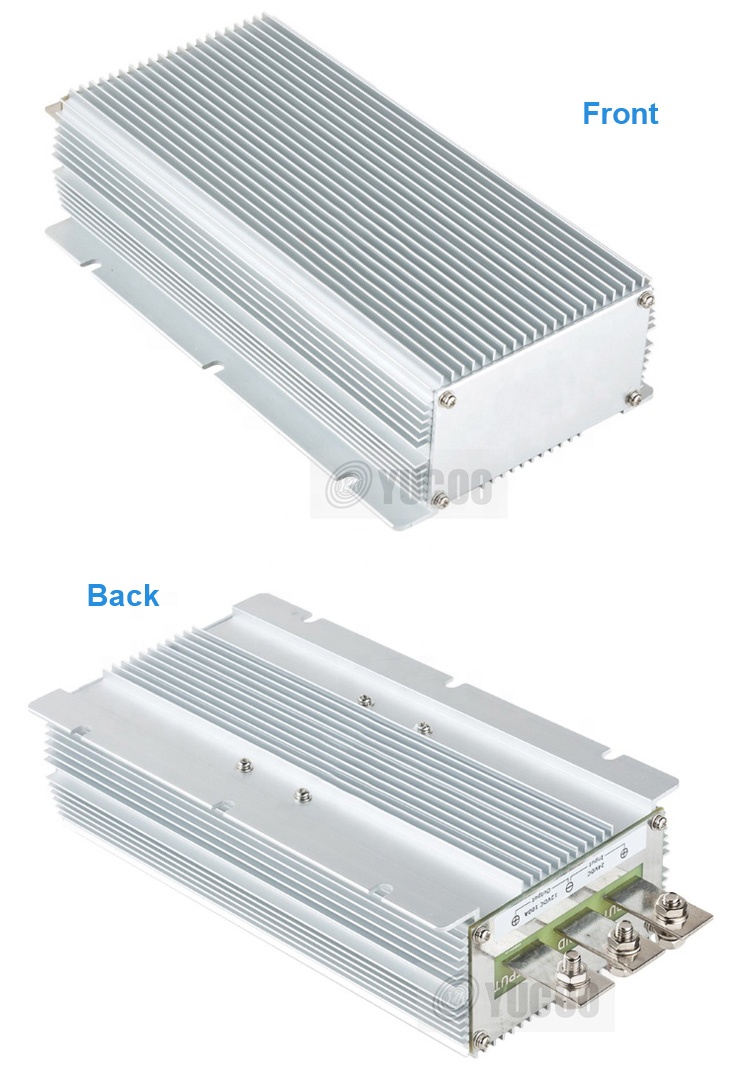

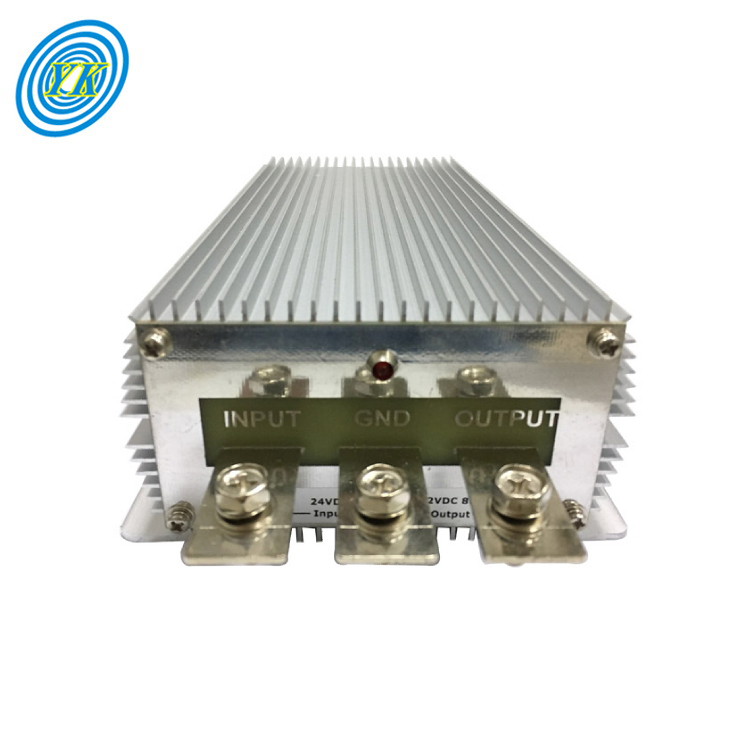

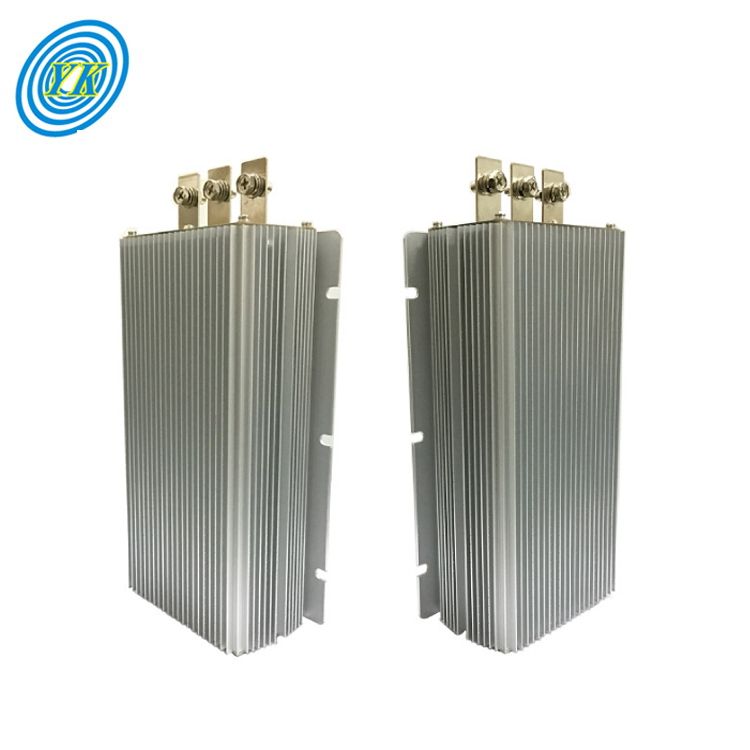

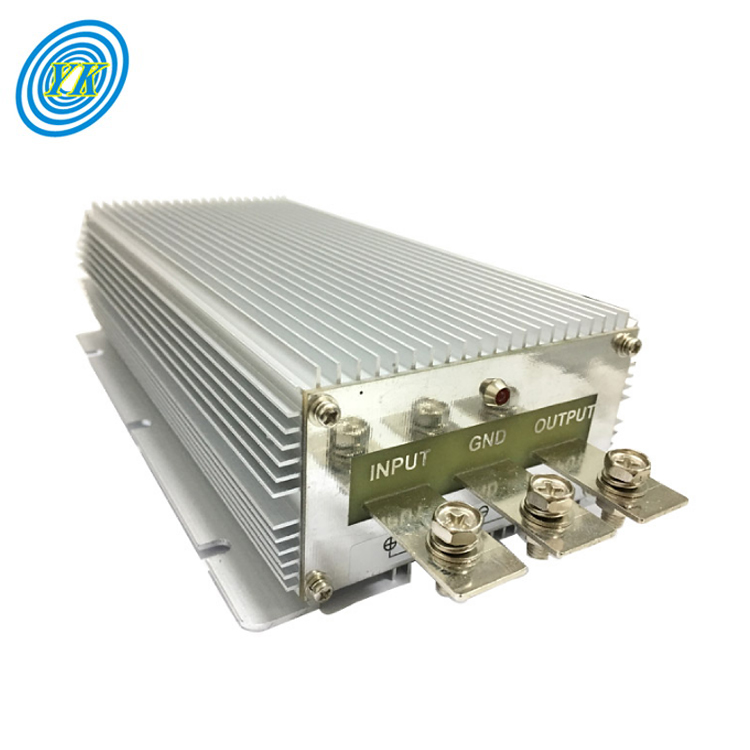

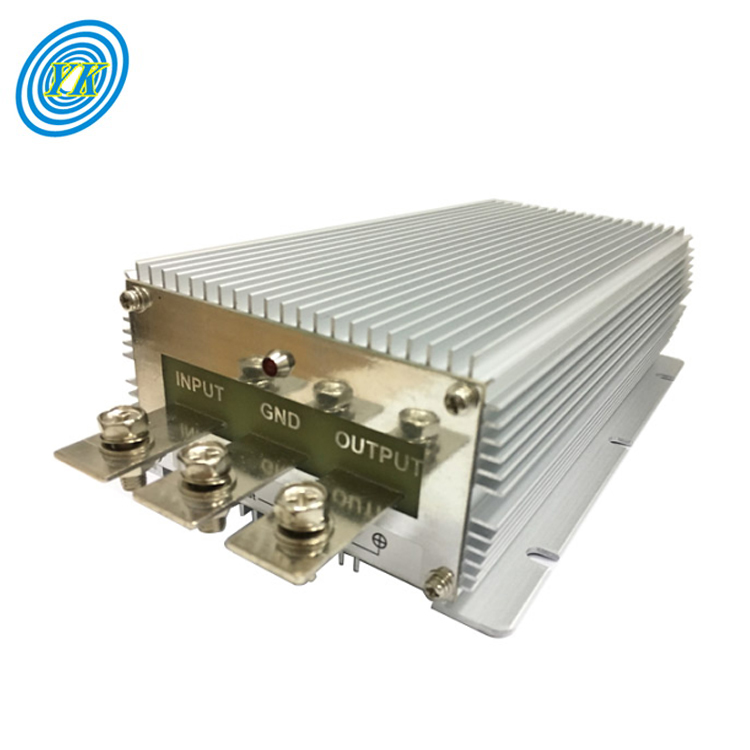

Detail Images
Recommend Products Range
| BUCK DC-DC CONVERTER MODEL LIST | |||
| Model Series | Input-V | Output-V | Output Current |
| YK-DD1224S5** | 12V/24V | 5v | 3A|5A|10A|15A|20A|30A|40A|50A|60A |
| YK-DD24S12** | 24v | 12v | 1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A |
| YK-DD24S13.8** | 24v | 13.8V | 5A|10A|15A|20A|30A|40A|50A|60A |
| YK-DD24S19** | 24V | 19V | 5A|10A|15A |
| YK-DD36S12** | 36V | 12V | 5A|10A|15A|20A|30A|50A|60A |
| YK-DD48S5** | 48V | 5V | 5A|10A|15A|20A |
| YK-DD48S12** | 48V | 12V | 5A|10A|15A|20A|30A|40A|50A|60A |
| YK-DD48S13.8** | 48V | 13.8V | 5A|10A|15A|20A|30A|40A|50A|60A |
| YK-DD48S19** | 48V | 19V | 5A|8A|10A |
| YK-DD48S24** | 48V | 24V | 3A|5A|10A|15A|20A|30A|40A|50A |
| YK-DD60S12** | 60V | 12V | 5A|10A|15A |
| YK-DD60S24** | 60V | 24V | 5A|10A |
| BOOST DC-DC CONVERTER MODEL LIST | |||
| Model Series | Input-V | Output-V | Output Current |
| YK-DD12S24** | 12V | 24V | 1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A |
| YK-DD12S19** | 12V | 19V | 5A|8A|10A|15A|20A |
| YK-DD12S28** | 12V | 28V | 3A|5A|8A|10A|15A|20A|25A|30A|40A |
| YK-DD12S48** | 12V | 48V | 1A|2A|3A|4A|8A|10A|15A|20A |
| YK-DD24S48** | 24V | 48V | 3A|5A|10A|20A|30A|40A |
| YK-DD24S36** | 24V | 36V | 5A |
| BUCK& BOOST DC-DC CONVERTER MODEL LIST | |||
| Model Series | Input-V | Output-V | Output Current |
| YK-DD12S12** | 8-40V | 12V | 1A|2A|3A|5A|6A|10A|15A|20A|25A |
| YK-DD12S13.8** | 8-40V | 13.8V | 3A|5A|10A|15A|20A|25A |
| YK-DD24S24** | 9-40V | 24V | 2A|3A|4A|6A|10A|15A |
