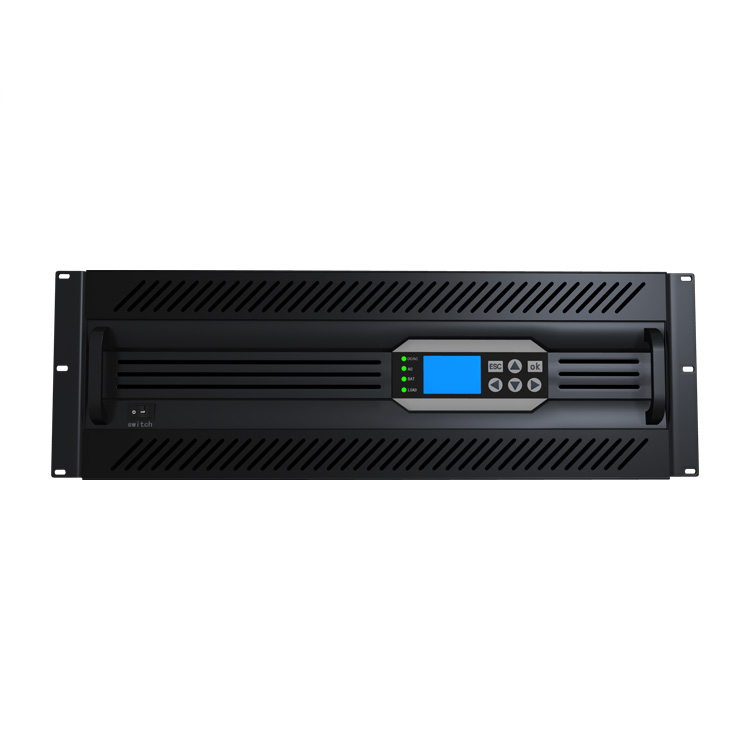

high power 6KVA inverter pure sine wave 220vdc to 220vac off grid inverter

USD1410~USD1460

Intput Voltage

220Vdc

Output Voltage

220Vac

Output Power

4800W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product Name:: high power 6KVA inverter pure sine wave 220vdc to 220vac off grid inverter

Features:

　1. Software protection and hardware protection, high reliability

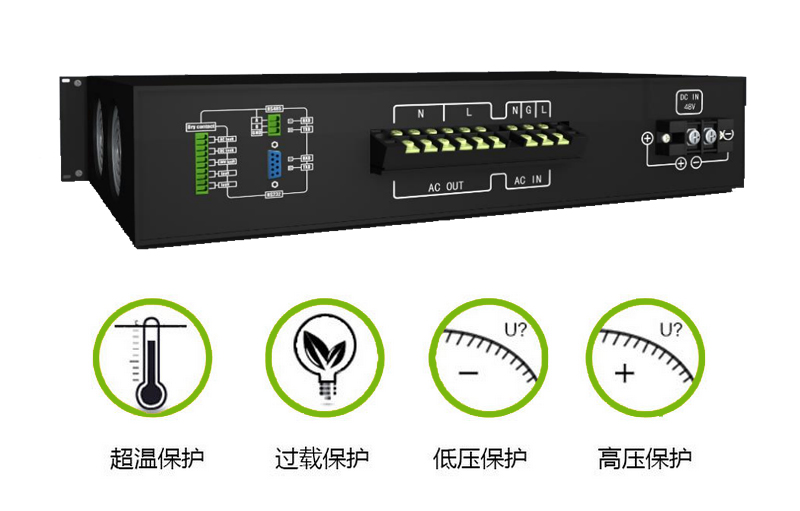

　2. Perfect protection: input polarity reverse, input over/under voltage, over current, short

circuit, over heat. Also the soft start function

　3. 3 Layers composite filter and magnetism shielded which and reduce the reflect noise

voltage to the input port, perfect electromagnetism compatibility.

　4. Intelligent Fan

　5.Can connect with pure sensibility load (Should reduce voltage)

Product Parameter

Model (YKDA-HT)**	1000	2000	3000	4000	5000	6000	8000
Rate capacity（VA）	1	2	3	4	5	6	8
Rate output power	800	1600	2400	3200	4000	4800	6400
Dc input
Rated input voltage	48VDC
Rate input Current	21A	42A	63A	83A	104A	125A	167A
Shut down voltage range	40V~60V
Start-up voltage range	45.5V~57V
Reflect noise current	≤10%
AC Input
Allow bypass voltage	132V-90V(±10V)
Rate input Current	8.3A	16.6A	25A	34A	42A	50A	67A
Bypass switch time	≤5ms
AC output
Rate output voltage and frequency	120Vac,50Hz
Waveform	Pure Sine Wave
Rate output current	6.7A	13.3A	20A	27A	33.3A	40A	54A
Output voltage precision	110Vac，50HZ/60HZ
Output frequency precision	50±0.1%Or60±0.1%
Waveform distortion	≤3% (linear load) (THD)
Dynamic respond time	5% (Load0←→100%)
Power factor	0.7/0.8
Overload ability	120%,30s
Efficiency	≥85%
Insulating intensity	1500Vac,1min
Noise (1m)	≤40dB
Operation temperature	50±0.1%Or60±0.1%,-20℃~+50℃
Humility	0～90%, non condensing
Operation altitude	≤1000m

Product Description

Applications

Customize Range: 220VAC output design:
