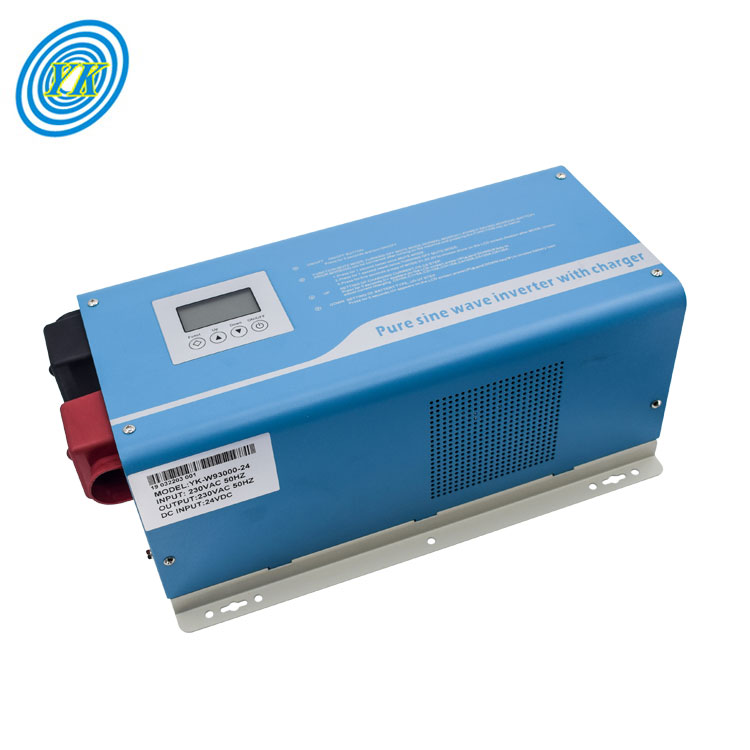

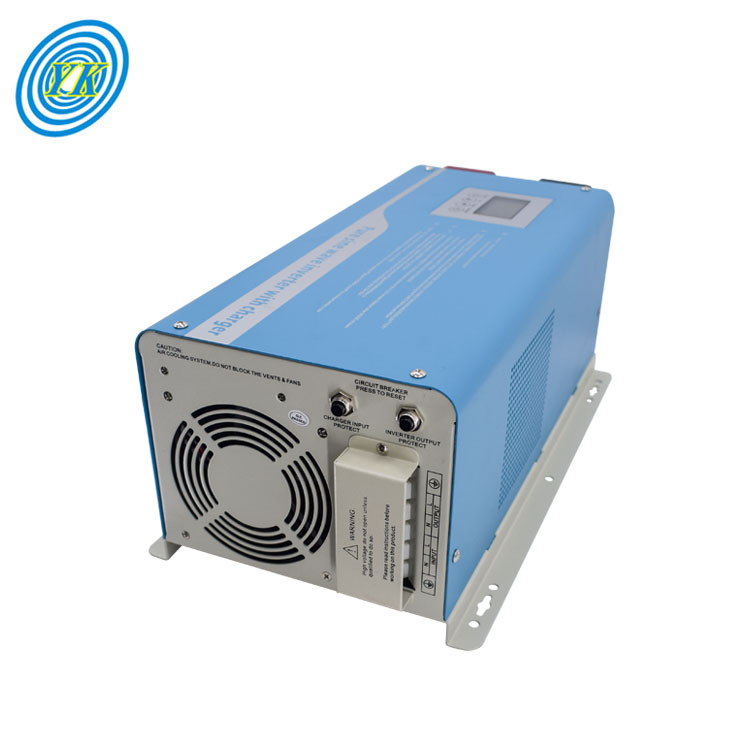

48/96VDC to 120/220VAC power inverter pure sine wave 6000w with a built-in charger

USD 560-630

Output Power

6000W

Input Voltage

48/96VDC

Output Voltage

AC120V; AC220V;±5%( Inverter mode)

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product Name:: 6000W pure sine wave 48/96V 220V inverter with charger

Model Number:: YK-W96000

Battery charge current:: 30A（default）can be set (0A 5A 10A 15A 20A 25A 30A)

Rated Power:: 6000W

Wave Form:: Pure Sine Wave Inverter

Output Voltage:: 120VAC/220VAC ±5%( Inverter mode)

Efficiency:: ＞85%

Certificate:: CE ROHS

Size:: 653*332*260

Weight:: 53/55kg

Introduction of Power Inverter

1.This inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is indeed pure. The unique dynamic current loop control technology ensures reliable operation of the inverter.

2.Load adaptability, including inductive load, capacitive load, resistive load, Hybrid load. High performance at over-load capacity and impact resistance.

3.It has perfect protection functions such as input over voltage, under-voltage, overload, overheat, and output short circuit etc.

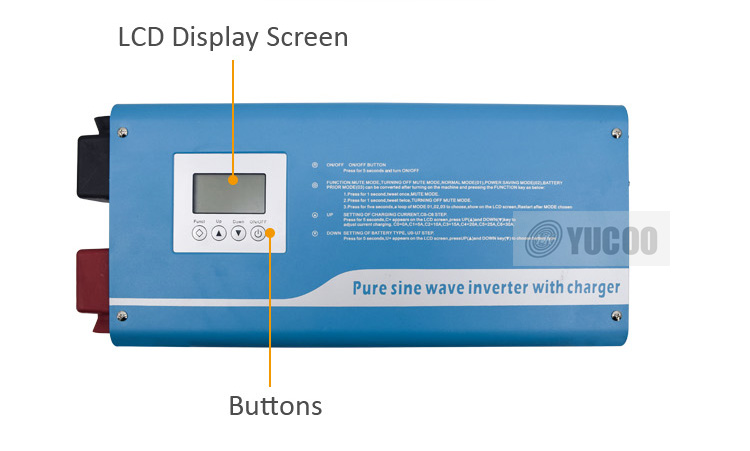

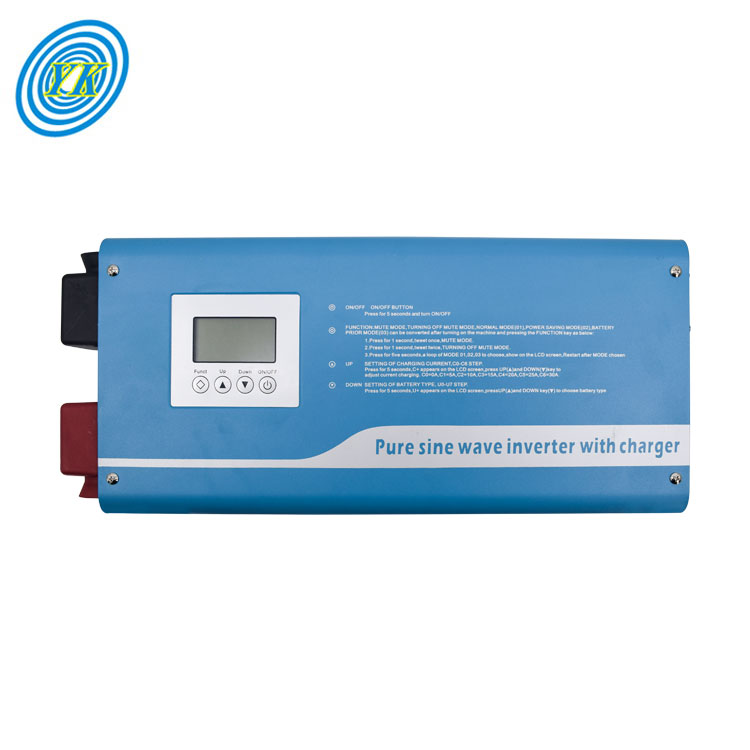

4.The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.

5.Stable performance, safe and reliable, long service life.

Product Description

1. Efficiency: 85%-92%

2. The service life can reach a decade

3. Working noise is low and the efficiency is high

4. Strong ability of resist concussion

5. Good load ability: Inductive , capacitive load and Hybrid load

6. Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/ Output

Short/Input polarity reverse/Overload

Product Parameters

Type：YK-W9 series		1KW	2KW		3KW	4KW	5KW		6KW	8KW
Rated power		1000W	2000W		3000W	4000W	5000W		6000W	8000W
Battery	Rated voltage	12VD/24VDC /48VDC			24VDC/48VDC		24/48/96VDC		48/96 VDC	48/96 VDC
	Charge current	30A（default）-C0-C6 can be set (0A 5A 10A 15A 20A 25A 30A)
	Battery type	U0-U7 can be set
		U0		Gel U.S.A				13.7V
		U1		A.G.M.1				13.4V
		U2		A.G.M.2				13.7V
		U3		Sealed lead Acid				13.6V
		U4		Gel European				13.8V
		U5		Open lead acid				13.8V
		U6		Calcuim(open)				13.6V
		U7		De sulphation cycle 15.5 for 4 hrs
Input	Voltage range	85-138VAC;170-275VAC
	Frequency	45-65Hz
Output	Voltage range	120VAC;220VAC；±5%( Inverter mode)
	Frequency	50/60Hz±1%( automatic identification)
	Output wave	Pure sine wave
	Switching time	＜10ms( typical load)
	Efficiency	＞85%（80% Resistance load）
	Overload	110-120% power load 30S protect；＞160%/300ms；
	Protection	Battery overvoltage/lowvoltage, overload, short circuit protection, overtemperature protection, etc.
Operating ambient temperature		0~40℃
Storage ambient temperature		-15 - +50℃
Operating/Storage ambient		0-90% No condensation
Machine Size: LWH (mm)		486247179				555307189				*653332260*
Package size: LWH（mm）		550310230				640370240				*715365310*
Net weight/ Gross weight(Kg)		11/13	14/16		16/18	23/27	26/31		30/34	53/55
