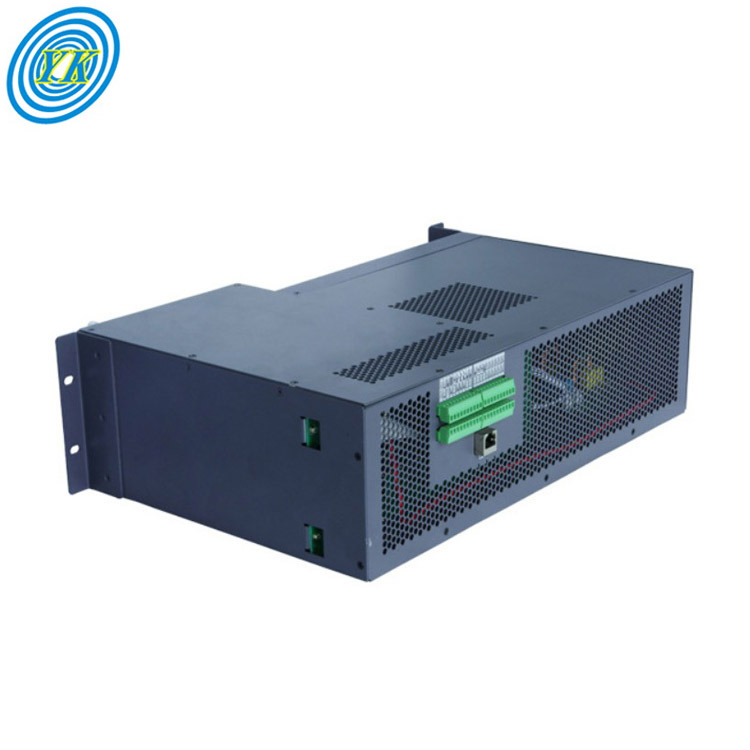

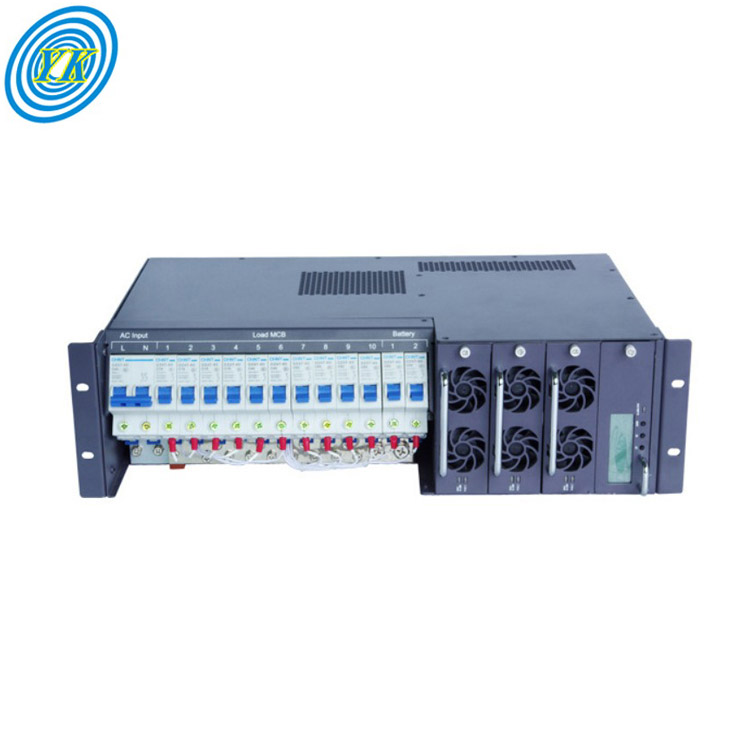

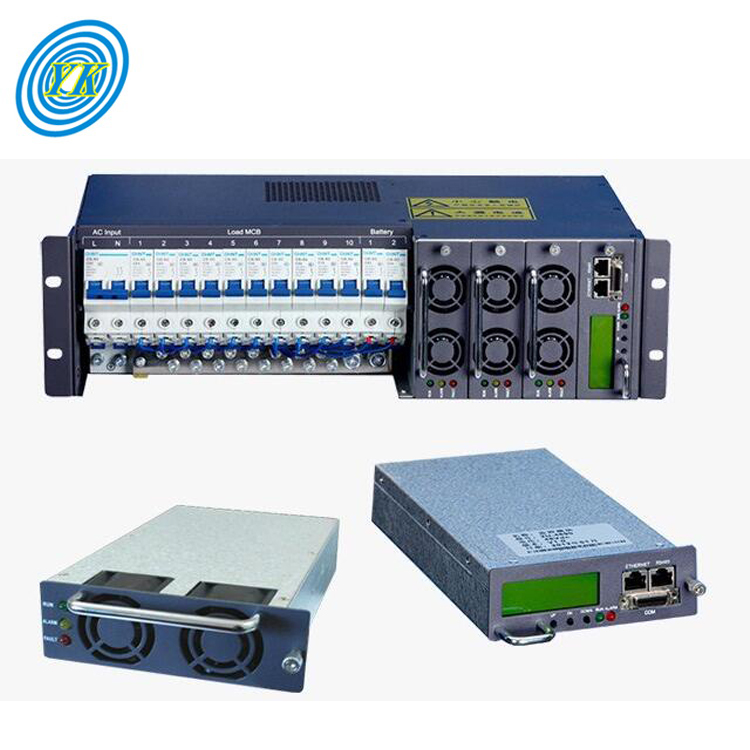

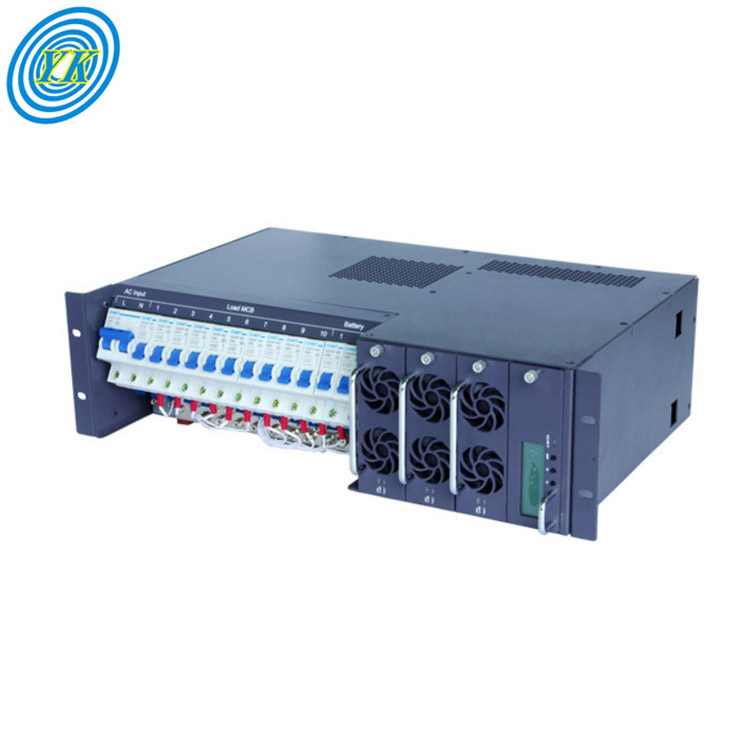

Yucoo ac to dc rectifier power supply system 48v 90a rectifier module for communication
USD705.9-756.25
Customized logo (Min. Order: 300 Sets)
Customized packaging (Min. Order: 300 Sets)
Graphic customization (Min. Order: 300 Sets)
Trade Assurance
On-time Dispatch Guarantee
Refund Policy
Quick Details
- Product name:
- rectifier power supply system
- Model Number:
- YK-GPE4890
- Input Voltage:
- 90VAC-285VAC
- Output Voltage:
- 48VDC
- Output Current:
- 90A
- AC input voltage range:
- 90VAC-285VAC
- DC input voltage range(Option):
- 100DC-400VDC
- Warranty:
- 1 Year
- Dimensions:
- 482.6*255*128.9mm
- Weight:
- ≤17.5KG
Product Description
1. Small size, height 1U, 3*30A rectifier module
2. Configurable module: 10A, 15A, 20A, 30A for option
3. The standard 19-inch installation
4. Improve monitoring and management and battery management
5. Provide RS485 communication interface
6. 1 channel load output, 1 channel battery input
7. Battery anti-reverse function
8. Under electrical function
9. Support hot-swappable
10.The energy-saving sleep function
11.The independent design of lightning protection unit (optional)
12.The power supply can be installed in any 19-inch rack independently
Product Parameters
| Model Number | YK-GPE4890 |
Output Power | 4320W |
Output Type | Telecom rectifier |
Output Frequency | 45/66HZ |
Output Current | 90A |
Warranty | 1 Year |
Power Factor | ≥0.99 |
Efficiency | ≥92% |
Rated output voltage range | 42VDC-58VDC |
Output rated current | 0A-90A |
Regulation accuracy | ≤±0.6 |
Peak to peak | ≤200mV |
Equal current | ≤5% |
Battery interface | 1-2way |
Dimensions | 482.6*255*128.mm |
N.W. | 17.5KG |

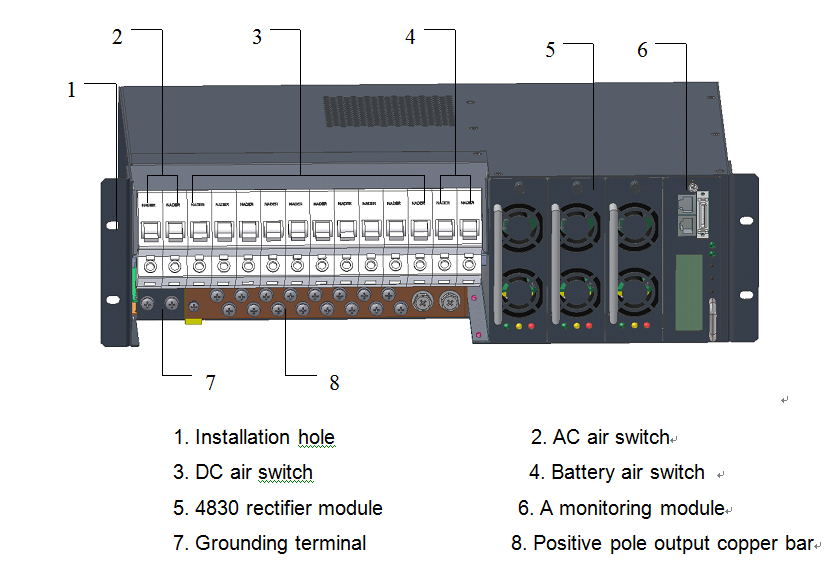

Details Images
