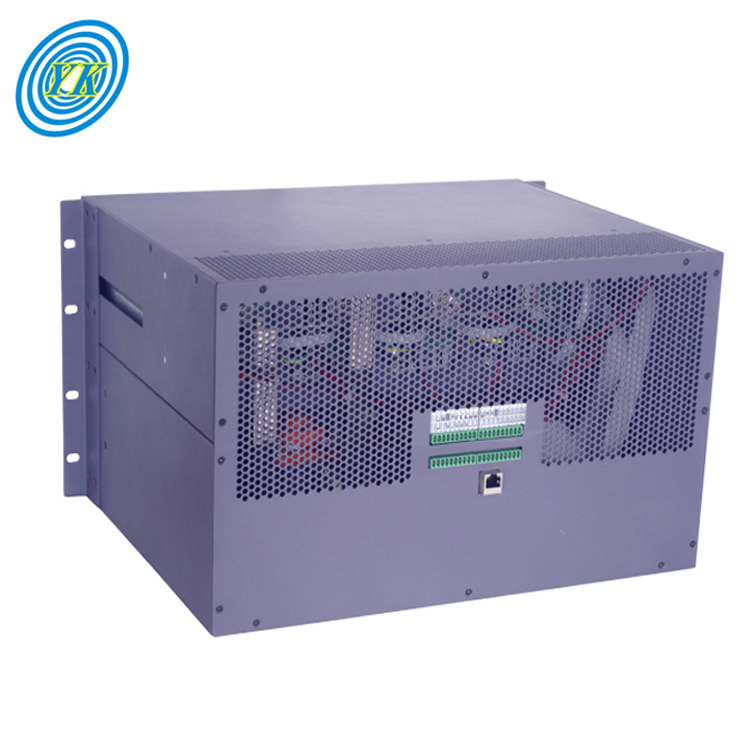

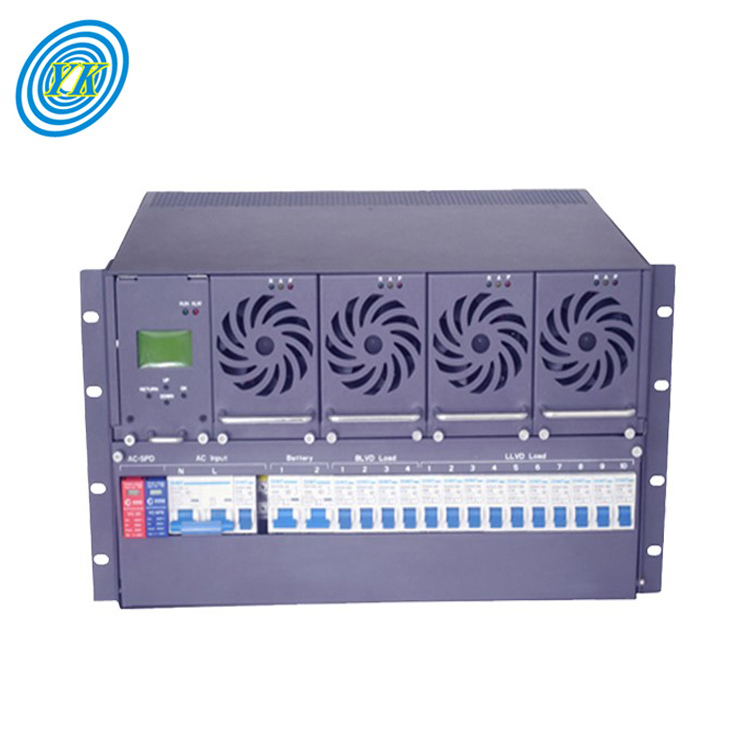

Yucoo ac to dc rectifier power supply system 48v 200a rectifier module for communication price
USD850-1280
Customized logo (Min. Order: 300 Sets)
Customized packaging (Min. Order: 300 Sets)
Graphic customization (Min. Order: 300 Sets)
Trade Assurance
On-time Dispatch Guarantee
Refund Policy
Quick Details
- Product name:
- rectifier power supply system
- Model Number:
- YK-GPE48200
- Input Voltage:
- 90VAC-285VAC
- Output Voltage:
- 48VDC
- Output Current:
- 200A
- AC input voltage range:
- 90VAC-290VAC
- DC input voltage range(Option):
- 100DC-400VDC
- Warranty:
- 1 Year
- Dimensions:
- 482.6*280*220mm
- Weight:
- ≤35KG
Product Description
1. Adoption of active power factorcompensation technology with factor ＞0.98
2. Wide operating range of AC input voltage: 90～280Va
3. Operating temperature range: -25℃～+55℃
4. Zero current/voltage switching tech with high efficiency ≥90%
5.Perfect battery management, battery temperature compensation, LVLD and LVBD protection, battery capacity test
6.Hot-swappable
7.Input over/under voltage protection
8.Output over voltage protection
9.Output over current protection
10.Output short circuit protection
11.Auto current sharing
12.Embedded mounting
Product Parameters
| Model Number | YK-GPE48200 |
Output Power | 9600W |
Output Type | Telecom rectifier |
Output Frequency | 45/66HZ |
Output Current | 200A |
Warranty | 1 Year |
Power Factor | ≥0.99 |
Efficiency | ≥92% |
Rated output voltage range | 42VDC-58VDC |
Output rated current | 0A-90A |
Regulation accuracy | ≤±0.6 |
Peak to peak | ≤200mV |
Equal current | ≤5% |
Battery interface | 1-2way |
Dimensions | 482.6*280*220mm |
N.W. | 35KG |
