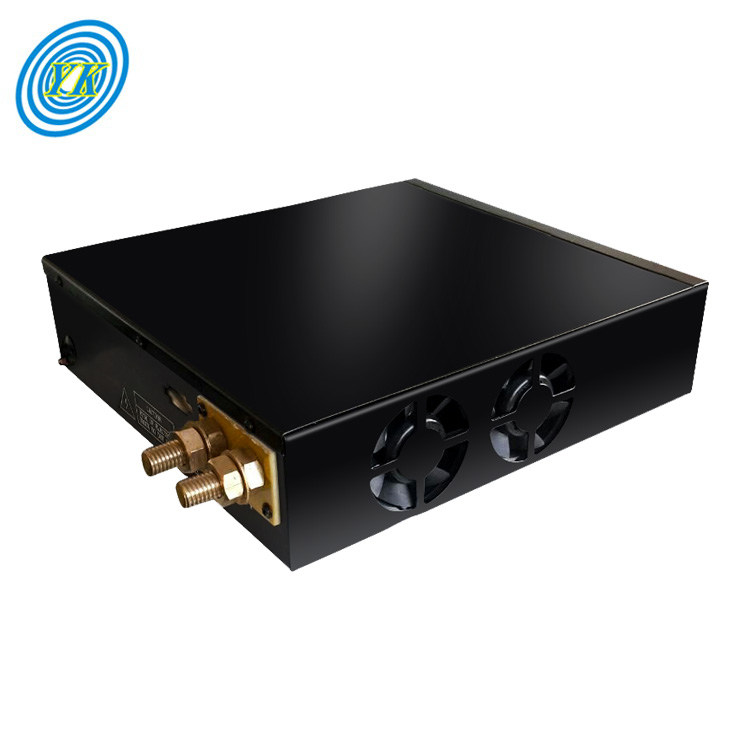

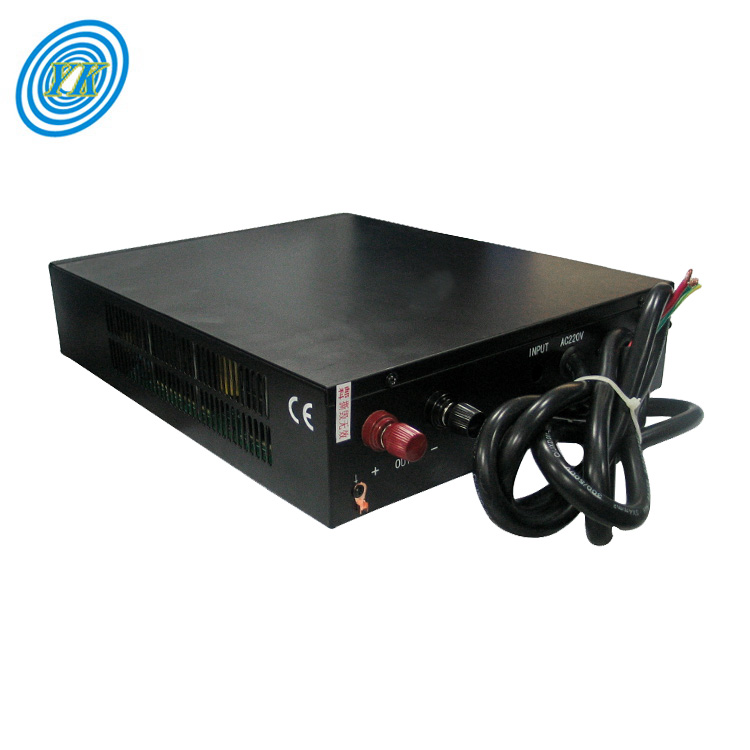

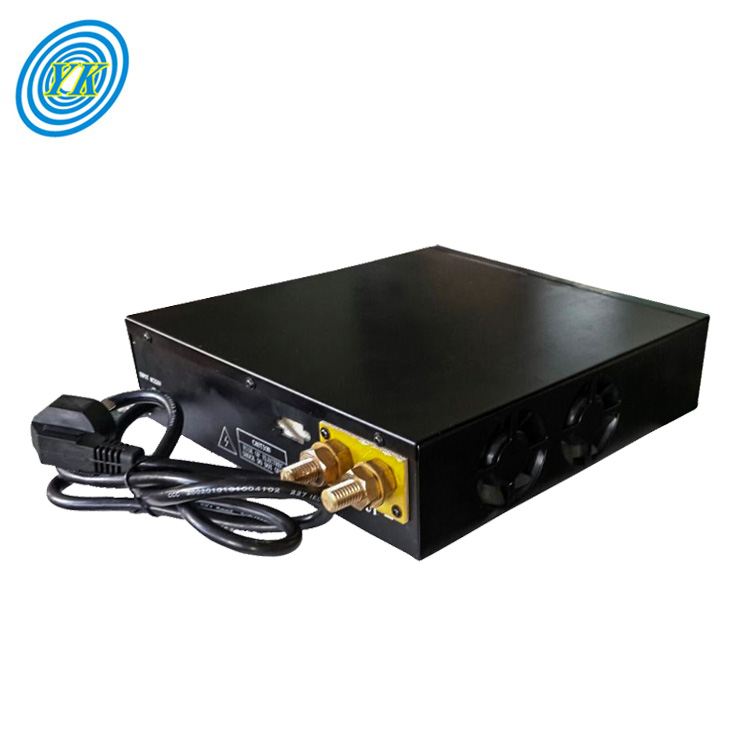

Yucoo 1500W 0-300V 0-5A variable dc adjustable switching power supply

USD 255-325

Input Voltage

1phase AC110V/220v±15% /3 phase AC380V±15%

Onput current

0-5A

Output Power

1500W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product Name:: Adjustable dc power supply

Input voltage:: 1phase AC110V±15% 50/60Hz/ 1phase AC220V±15% 50/60Hz/ 3 phase AC380V±15% 50/60Hz

Output voltage range:: 0-300VDC

Output current range :: 0-5A

Power:: 1500W

Source Voltage Regulation:: constant voltage ≤0.2％

Protection:: over-temperature automatic protection; output overvoltage, over-current and short-circuit protection

Weight:: 4.5kg

Warranty:: 12months

MTTF:: ≥50000h

Product Description

1. Advanced switching mode power supply technology and components, excellent design, small volume, light weight, high efficiency, which ensures the stability and reliability of long-term full-load operation.

2. Constant voltage value and constant current value can be continuously adjustable within the range 0~100%

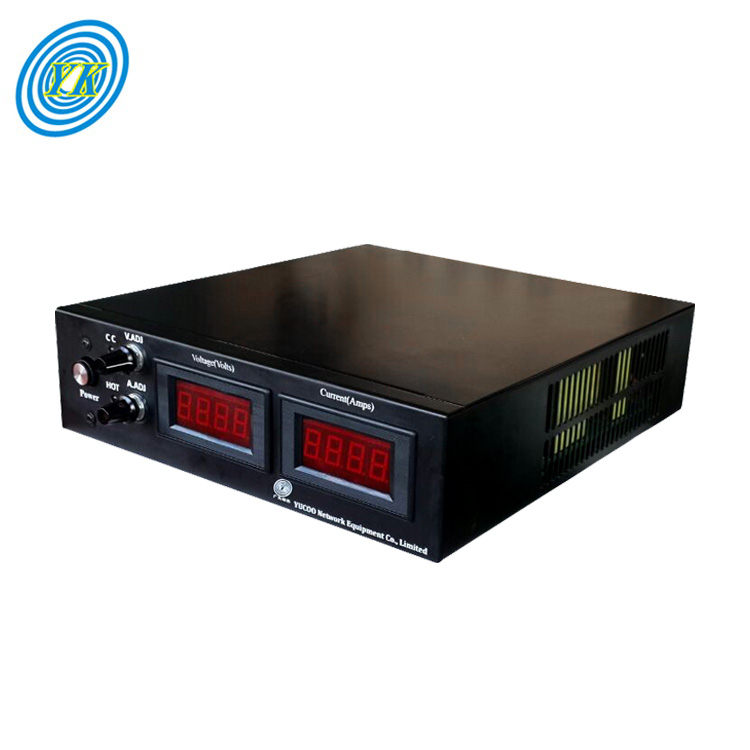

3. Digital display output voltage and output current.

4. Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; start up delay soft starting can avoid the overshoot voltage when start up.

5. Simple operation, convenient use.

6. Store temperature: (-40～70)℃, Working temperature: (-20～50)℃

7. Relative humidity: 90% (40±2℃), atmospheric pressure (70-106)kPa

Customize range

Regards the Variable DC power supply,

We can customize any constant voltage and constant current according to your request.

Such as:

1. 0-1500V variable or appointed

2. 0-2000A variable or appointed

Product Parameters

Model	YK-AD3005
Output range	0-300V 0-5A
Output mode	Constant voltage (or appointed) variable/adjustable Constant current (or appointed) variable/adjustable
AC wide input	1phase AC110V±15% 50/60Hz/ 1phase AC220V±15% 50/60Hz/ 3 phase AC380V±15% 50/60Hz
Power	Max 1500W
Source Voltage Regulation	constant voltage ≤0.2％
Load Regulation	constant voltage ≤1％； constant current≤2％
Line Regulation	constant voltage ≤0.3%
Ripple Voltage	total ripple Vpp≤2% (max voltage)(60V2%=1.2V) 100Hz Ripple: Vpp≤0.5%(max voltage)(60V0.5%=0.3V)
Operation Environment temperature	(-10~45)℃
Efficiency	≥89％
Digital meter	voltage meter and current meter
Digital display	Precision of output voltage±1.5% Precision of output current±2.0%
Insulating resistance	Input-Output：≥20MΩ
	Input— Shell：≥20MΩ
	Output-Shell：≥80MΩ
Insulating Strength	Input-Output：AC1500V，10mA，1minute
	Input— Shell：AC1500V，10mA，1minute
	Output-Shell：AC1500V，10mA，1minute
Imbalance of equalized current	≤5％＋2.5A
Protection	Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; switch-on delay softstarting can avoid the over swung output voltage when switching on.
Over-temperature protection	(70~80)℃
MTTF	≥50000h
External dimension	253(W)68(H)268(D)mm
Weight	NW 4.5kg
Radiating wind hole	Internal radiating wind hole
