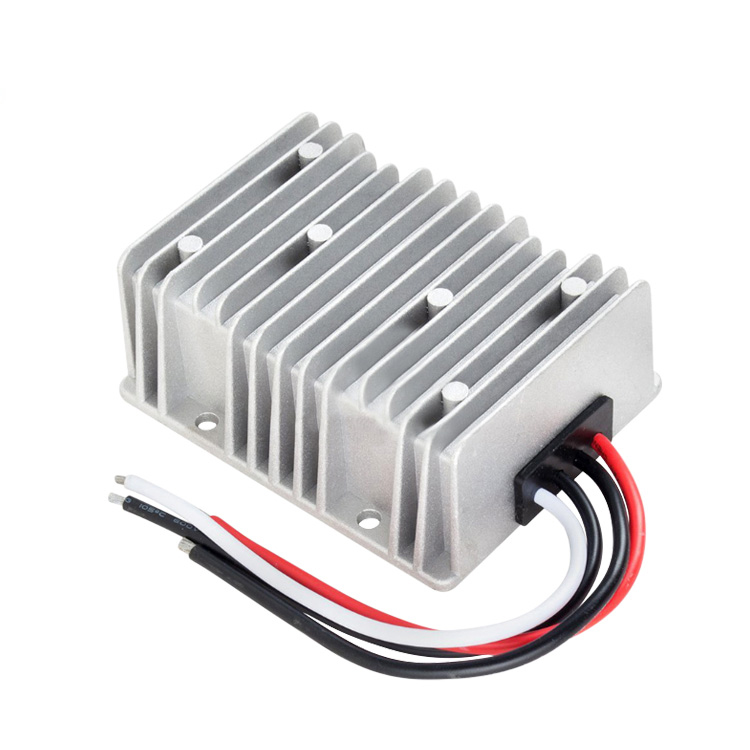

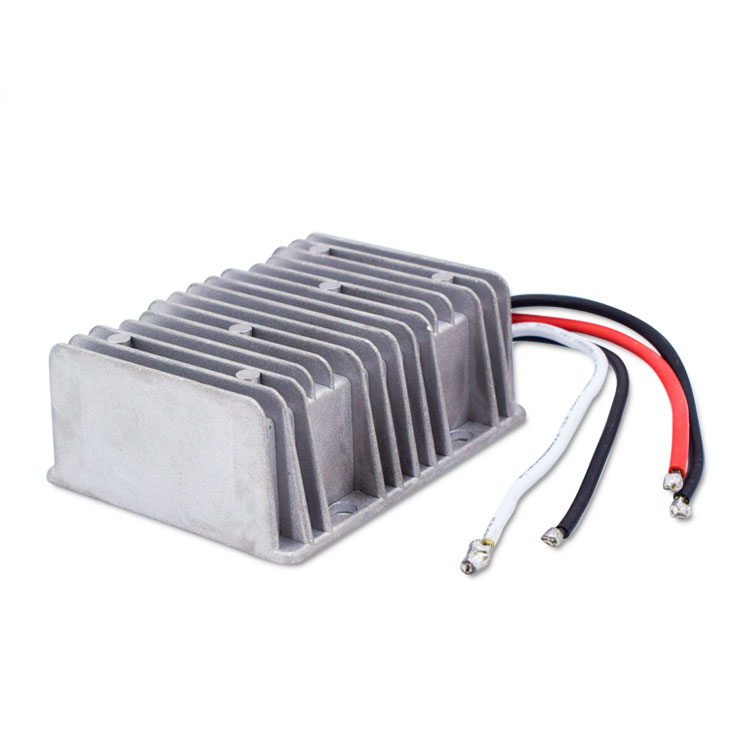

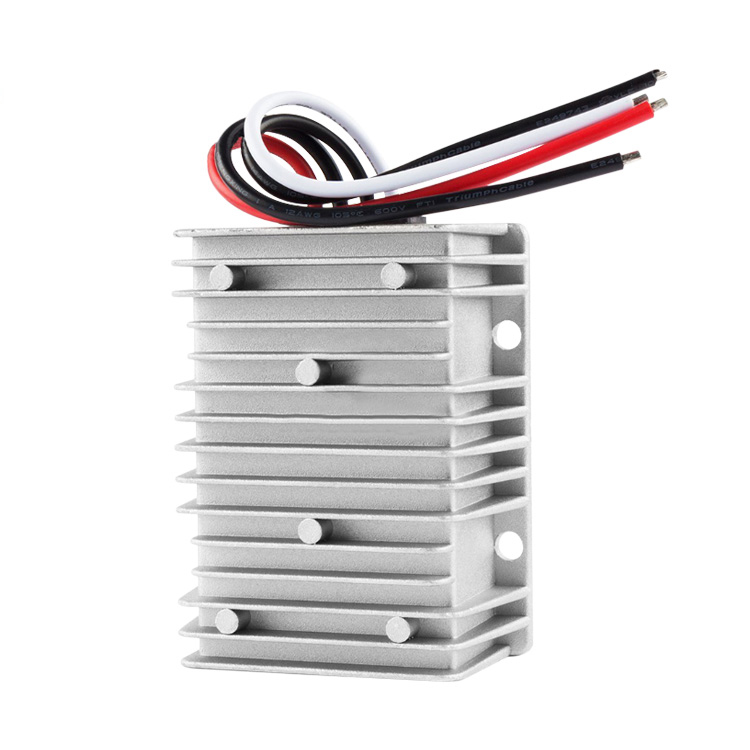

Customized for electric vehicle 12V 24V to 5V 40A dc converter step down converter

USD 8.23-8.55

Input Voltage

12/24VDC(9-32Vdc)

Output Voltage

5VDC

Output Power

200W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product Name:: DC DC Converter

Input voltage:: 12V 24V(9-32V)

Output voltage:: 5V

Current:: 40A

Certificate:: CE ROHS

Protections:: Over-current / voltage / load protection

Warranty:: 1 year

Working temperature:: -40 ~ +80°c

Protections:: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage

Size:: 100*80*39MM

Product Description

1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 9-32Vdc
4. 100% waterproof & anti-shock protection, Ultra compact size, light weight
5. Industry grade step-down converter, efficiency up to 92%
6. Waterproof level: IP68
7. According CE(EN61000) / RoHS design
8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,
9. Protections: Over-current, Over-temperature, and Short-circuit,
Auto-recovery when device is back to normal operating
10. Non-Isolated Module

11. 1 year warranty

Product Parameters

Product name	DC DC Converter
Model	YK-DD1224S540
Input Voltage	12/24 VDC
Voltage range	9-32 VDC
Output Voltage	5 VDC
Output Current	40 Amps
Output Power	200 Watts
Effciency	92%
Working temperature	-35℃~+80℃
Weight	500G
Size	1008039MM
Installation length	13-15cm

Product details

photobank (1).jpg

Recommend Products Range

BUCK DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current
YK-DD1224S5**	12V/24V	5v	3A\|5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD24S12**	24v	12v	1.5A\|3A\|5A\|8A\|10A\|15A\|20A\|30A\|40A\|50A\|60A\|85A\|100A
YK-DD24S13.8**	24v	13.8V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD24S19**	24V	19V	5A\|10A\|15A
YK-DD36S12**	36V	12V	5A\|10A\|15A\|20A\|30A\|50A\|60A
YK-DD48S5**	48V	5V	5A\|10A\|15A\|20A
YK-DD48S12**	48V	12V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD48S13.8**	48V	13.8V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD48S19**	48V	19V	5A\|8A\|10A
YK-DD48S24**	48V	24V	3A\|5A\|10A\|15A\|20A\|30A\|40A\|50A
YK-DD60S12**	60V	12V	5A\|10A\|15A
YK-DD60S24**	60V	24V	5A\|10A
BOOST DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current

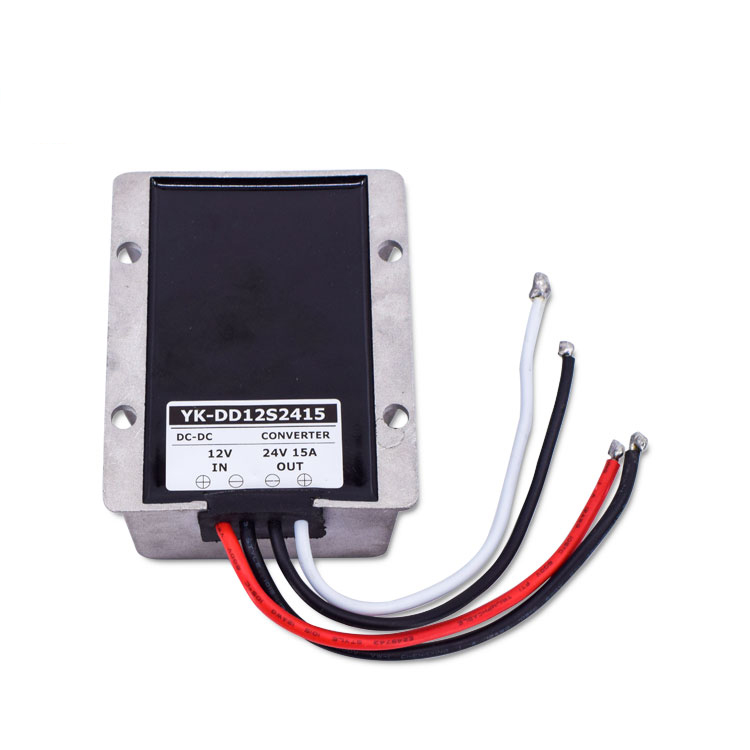

YK-DD12S24**	12V	24V	1A\|2A\|3A\|5A\|8A\|10A\|15A\|20A\|25A\|30A\|40A\|50A
YK-DD12S19**	12V	19V	5A\|8A\|10A\|15A\|20A
YK-DD12S28**	12V	28V	3A\|5A\|8A\|10A\|15A\|20A\|25A\|30A\|40A
YK-DD12S48**	12V	48V	1A\|2A\|3A\|4A\|8A\|10A\|15A\|20A
YK-DD24S48**	24V	48V	3A\|5A\|10A\|20A\|30A\|40A
YK-DD24S36**	24V	36V	5A
BUCK& BOOST DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current
YK-DD12S12**	8-40V	12V	1A\|2A\|3A\|5A\|6A\|10A\|15A\|20A\|25A
YK-DD12S13.8**	8-40V	13.8V	3A\|5A\|10A\|15A\|20A\|25A
YK-DD24S24**	9-40V	24V	2A\|3A\|4A\|6A\|10A\|15A
