Yucoo 12/24/48V 40A solar MPPT charge controller 480W/960W/1920W
USD116.8-125.8
Customized logo (Min. Order: 300 Sets)
Customized packaging (Min. Order: 300 Sets)
Graphic customization (Min. Order: 300 Sets)
Trade Assurance
On-time Dispatch Guarantee
Refund Policy
Quick Details
- Product name:
- MPPT charge controller
- Model Number:
- YK-MT40
- Efficiency:
- ≥96.5%
- Rated current:
- 40A
- Display:
- LCD+LED
- Humidity:
- 0~90%RH（No condensation）
- Working temperature:
- 0-55℃
- Environment temperature:
- -20℃~+40℃
- Dimensions:
- 225*290*95mm
- Weight:
- 3KG
Product Description
— PV wide voltage range input
— Three-stage charging technology
— Setting float charging voltage available
— DSP chip control, high precision, high efficiency
— Intelligent maximum power point tracking technology
— Photovoltaic/battery anti-anti protection/short circuit protection/overcurrent protection
Product Parameters
| Model Number | YK-MT40A |
Rated charging current | 40A |
System voltage | 12V/24V/48V |
Rated current | 40A |
Max current | 41A |
Charging mode | MPPT Intelligent maximum power point tracking technology |
Charging type | Three stages: constant current charge, equal charging, Floating charge |
Starting time | ≤ 10s |
Dynamic response recovery time | ≤500us |
No load consumption | ≤2W |
Efficiency | ≥96.5% |
Display | LCD+LED |
System identification voltage range | 12V:9-15V; 24V:18-30V; 48V:36-60V; 96V:72V-120V |
MPPT operation voltage | 12V:20-100V; 24V:38-150V; 48V:65-150V; 96V:145V-200V |
Max PV input power | 480W/960W/1920W |
Protect function | Input and output polarity reverse protection Low voltage protection High voltage protection Short circuit protection Over temperature protection |
Working temperature and humidity | 0℃～+55℃；0～90%RH |
Environment temperature | -20℃~+40℃ |
Storage temperature | -40℃～+70℃ |
Acoustic noise | ≤50dB |
Altitude | 0~3000M |

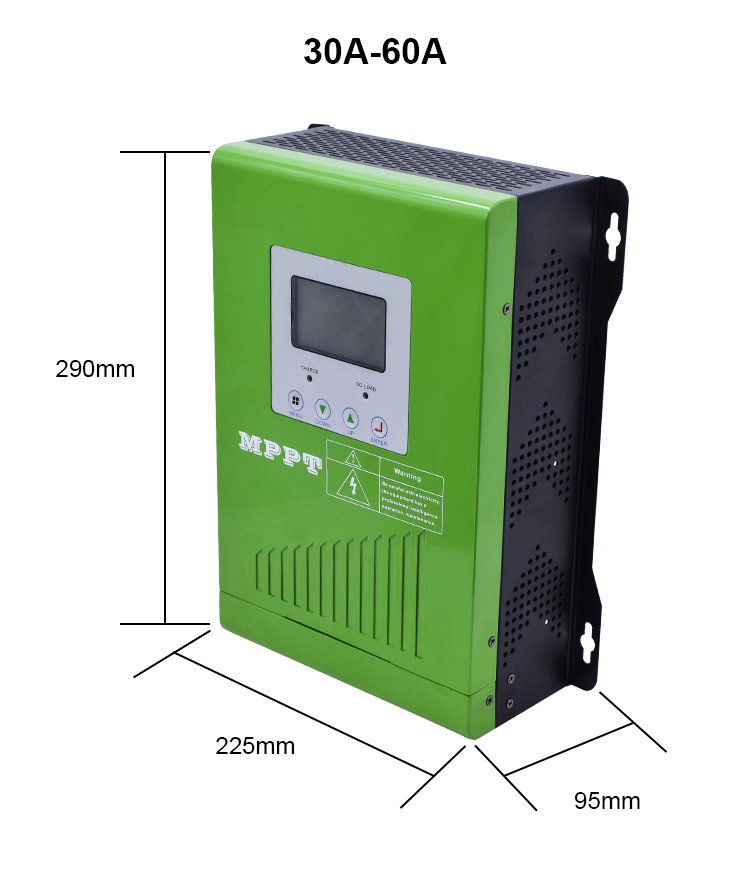

Dimensions | 225*290*95mm |
N.W. | 3KG |
