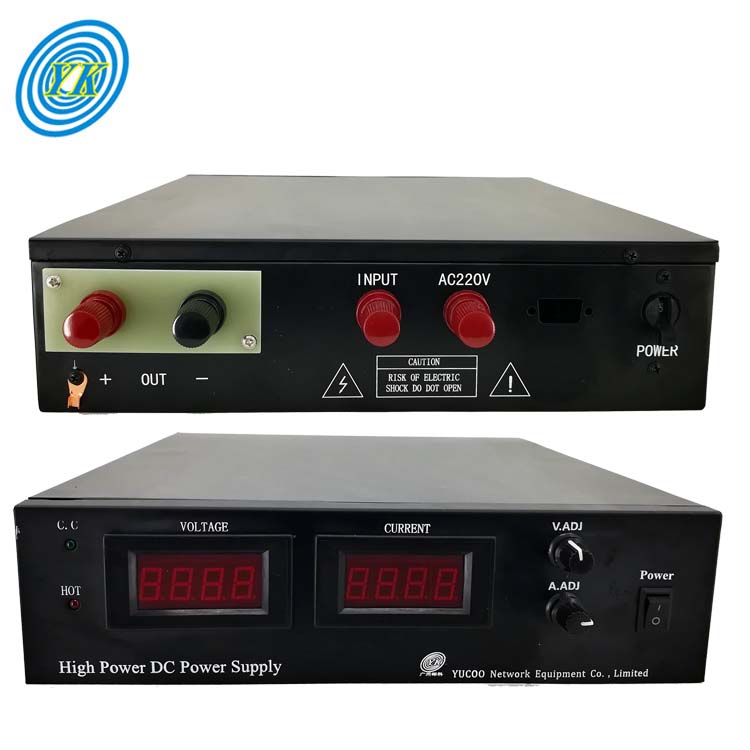

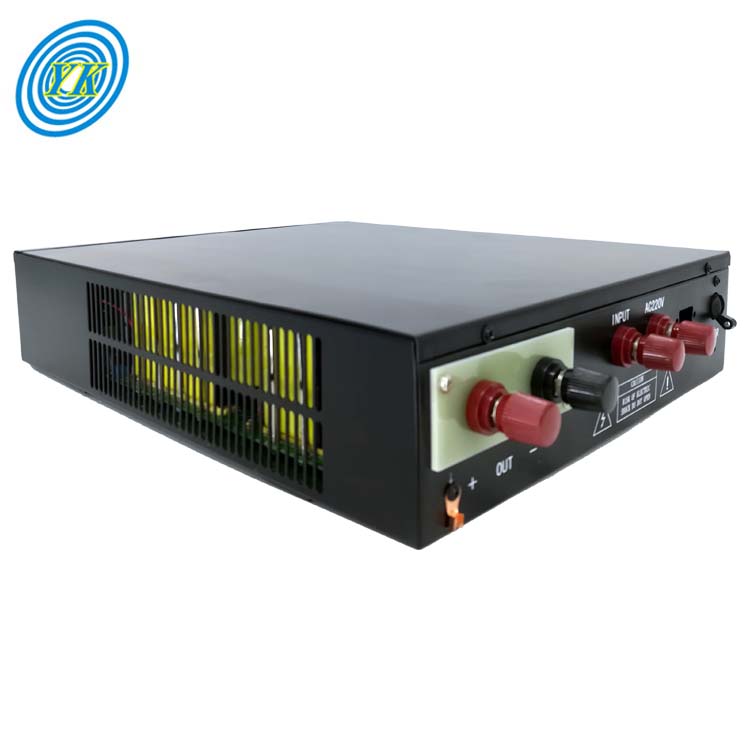

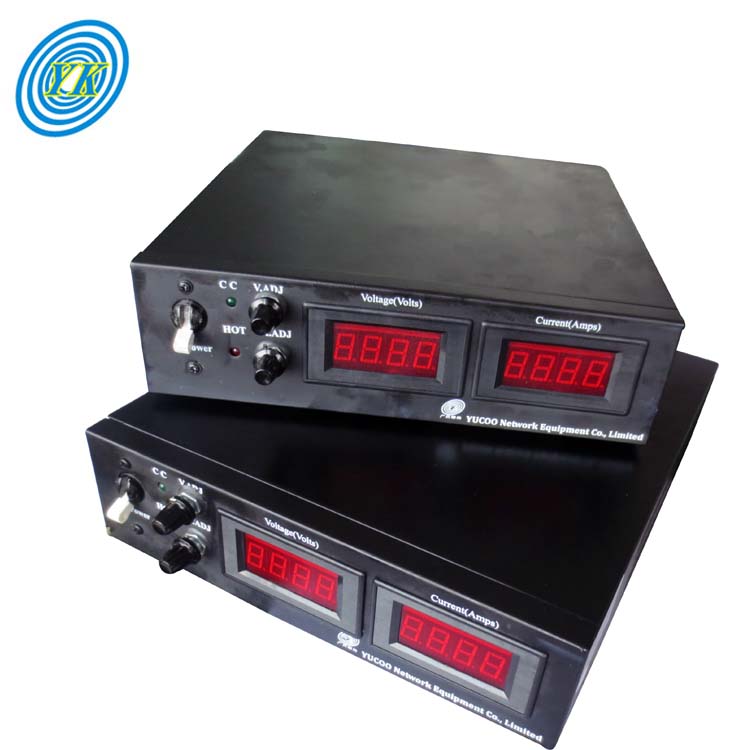

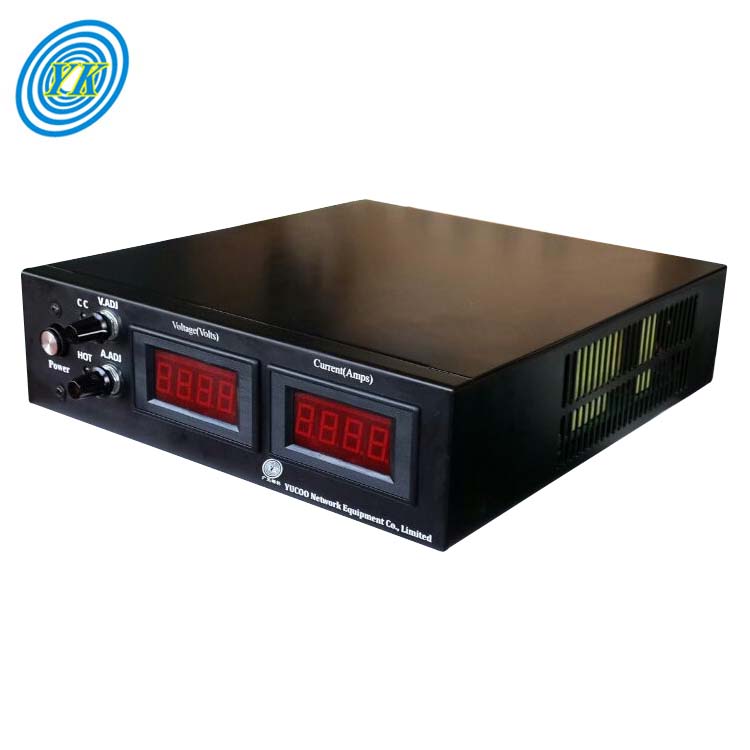

Yucoo 0~100v 30amp 3000w Variable dc power supply

USD720~USD795

Input Voltage

1phase AC220V±15% 50/60Hz

Output Voltage

0-100VDC

Output Power

3000W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product Name:: variable power supply

Input voltage:: 1phase AC220V±15% 50/60Hz

Output voltage range:: 0-100VDC

Output current range :: 0-30A

Power:: 3000W

Source Voltage Regulation:: constant voltage ≤0.2％

Protection:: over-temperature automatic protection; output overvoltage, over-current and short-circuit protection

Weight:: 8.5kg

Warranty:: 12months

MTTF:: ≥50000h

Product Specifications

Test Item	Performance Parameter
Model	YK-AD10030
Output range	0-100Vdc 0-30A
Output mode	Constant voltage (or appointed) variable/adjustable Constant current (or appointed) variable/adjustable
AC wide input	1phase AC110V±15% 50/60Hz/ 1phase AC220V±15% 50/60Hz/ 3 phase AC380V±15% 50/60Hz
Power	Max 3000W
Source Voltage Regulation	constant voltage ≤0.2％
Load Regulation	constant voltage ≤1％； constant current≤2％
Line regulation	constant voltage ≤0.3%
Ripple Voltage	total ripple Vpp≤2% (max voltage)(60V2%=1.2V) 100Hz Ripple: Vpp≤0.5%(max voltage)(60V0.5%=0.3V)
Operation Environment temperature	(-10～45)℃
Efficiency	≥89％
Digital meter	voltage meter and current meter
Digital display	Precision of output voltage±1.5% Precision of output current±2.0%
Insulating resistance	Input-Output：≥20MΩ
	Input— Shell：≥20MΩ
	Output-Shell：≥80MΩ
Insulating Strength	Input-Output：AC1500V，10mA，1minute
	Input— Shell：AC1500V，10mA，1minute
	Output-Shell：AC1500V，10mA，1minute
Imbalance of equalized current	≤5％＋2.5A
Protection	Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; switch-on delay soft starting can avoid the over swung output voltage when switching on.
over-temperature protection	(70～80)℃
MTTF	≥50000h
Dimension	300(W)78(H)370(D)mm
Weight	NW 8.5kg
Radiating wind hole	Internal radiating wind hole
