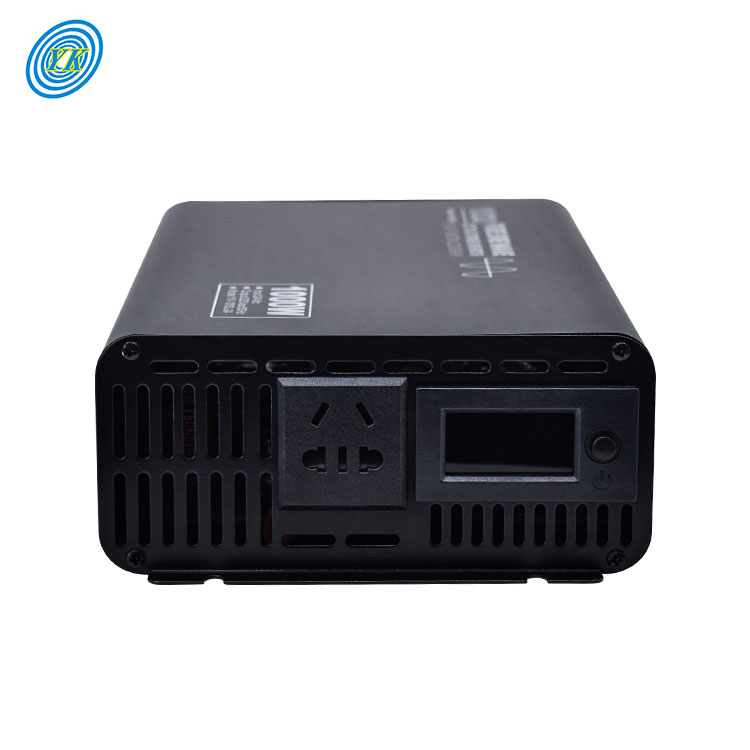

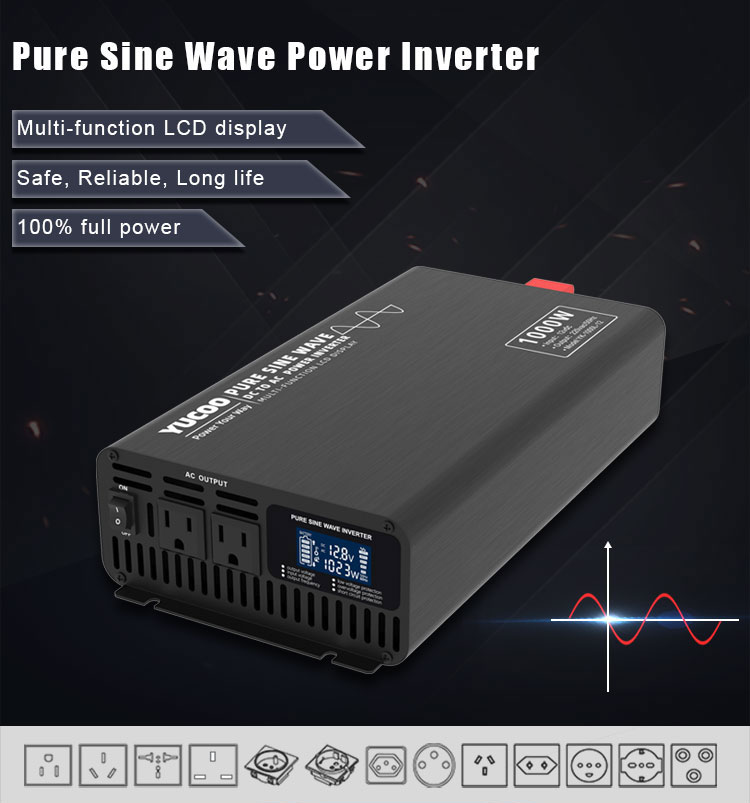

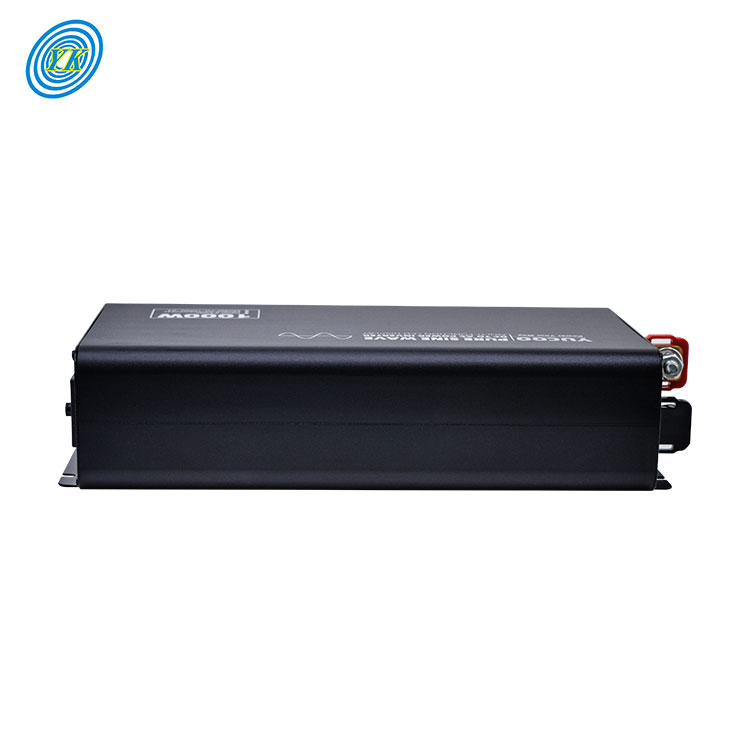

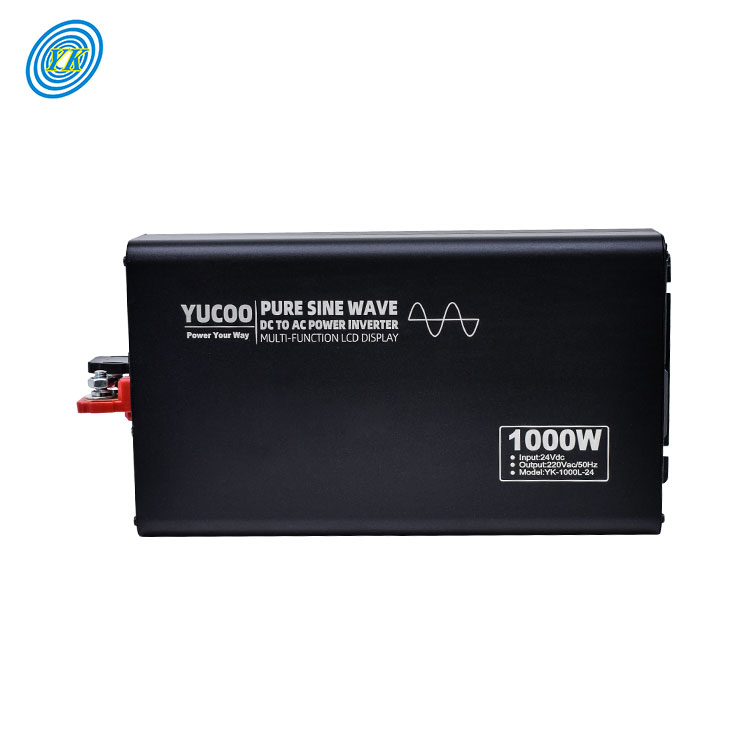

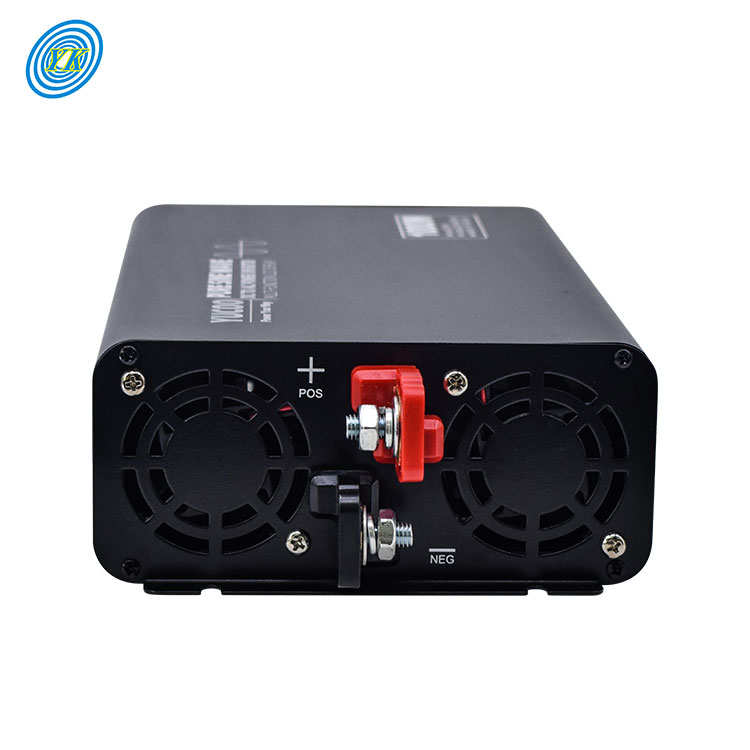

yucoo hot sell Off-grid 1000W 12V To 220V Inverter 1000W 12V To 110V Inverter
$76-$88
Customized logo (Min. Order: 300 Sets)
Customized packaging (Min. Order: 300 Sets)
Graphic customization (Min. Order: 300 Sets)
Trade Assurance
On-time Dispatch Guarantee
Refund Policy
Product Details
Quick Details
- Product name:
- power inverter
- Wave form:
- pure sine wave
- Rated power:
- 1000W
- Peak power:
- 20000W
- Output Frequency:
- 50Hz/60Hz
- Size:
- 300*173*76mm
- Weight:
- 3.0Kg
- Warranty:
- 12 Months
- Display:
- LCD Screen
- Efficiency:
- ≥90%
Product Description
1. Efficiency: 85%-92%
2. The service life can reach a decade
3. Working noise is low and the efficiency is high
4. Strong ability of resist concussion
5. Good load ability: Inductive , capacitive load and Hybrid load

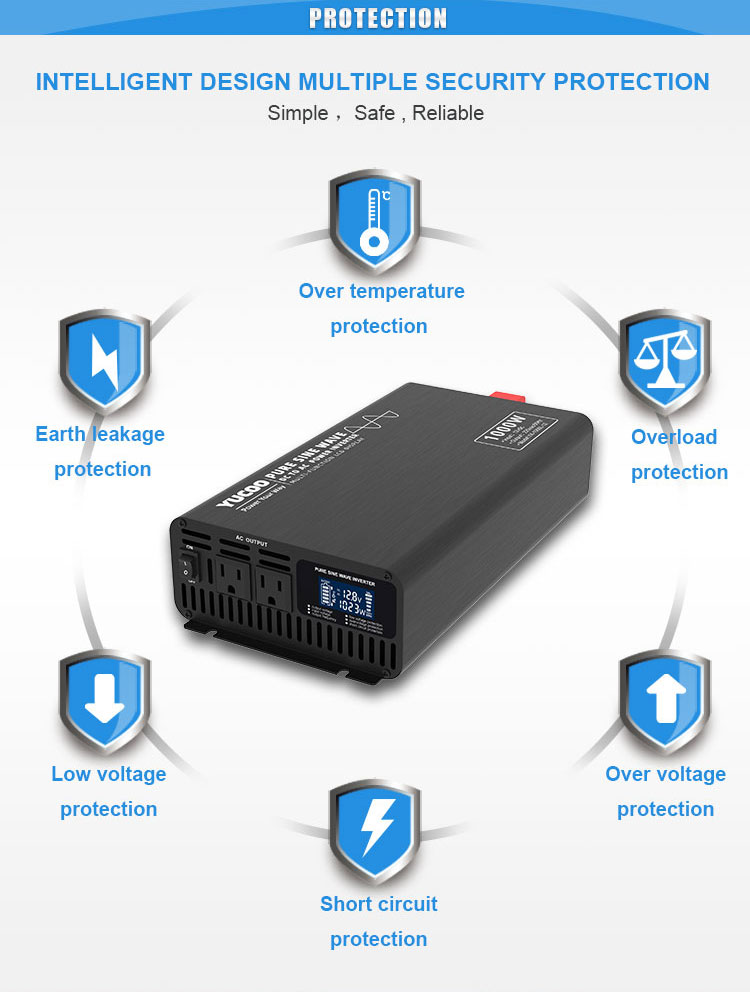

6. Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/ Output
Short/Input polarity reverse/Overload
Product Parameters
| Model | 600L | 1000L | 1500L | 2000L | 3000L | 4000L | 5000L |
| Display | LCD Display | ||||||
| Dc Input | |||||||
| Input voltage | DC12V; DC24V; DC48V; DC60V; DC72V | ||||||
| Range voltage | DC10-15V; DC20-30V; DC40-60V; DC50-75V; DC60-90V | ||||||
| Output | |||||||
| Output Voltage | AC120V; AC220V | ||||||
| Output Frequency | 50Hz or 60Hz | ||||||
| Wave from | 600W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W |
| Peak Power | 1200W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W |
| Efficiency | ≥90% | ||||||
| Protect function | |||||||

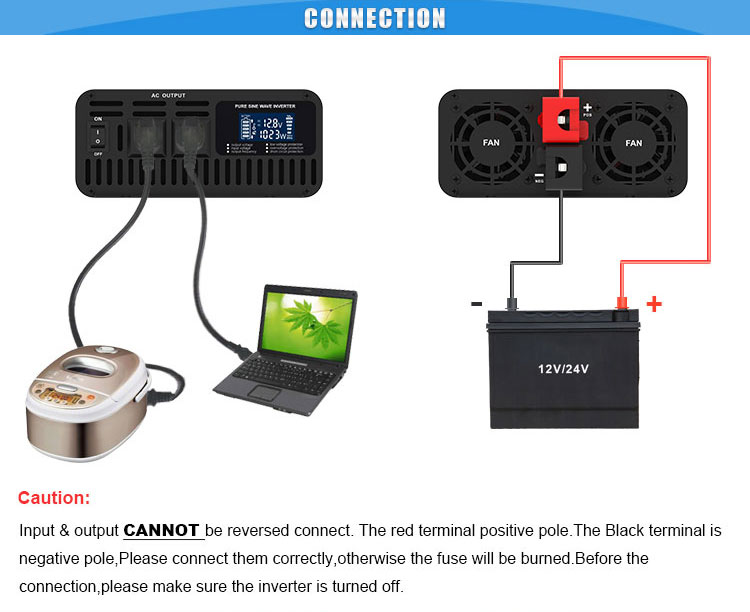

| Function-1 | Input reverse connection protection: Fuse | ||||||
| Function-2 | Input low voltage protection : 60Vdc±0.3V | ||||||
| Function-3 | Recovery voltage : 72V(78V±0.3) | ||||||
| Function-4 | Input high voltage protection:90Vdc±0.3V | ||||||
| Function-5 | Over temperature protect: 80°± 5° | ||||||
| No-load current | 0.3A | 0.6A | 0.7A | 0.7A | 1.0A | 1.0A | 1.0A |
| Over load protection | 660±50W | 1100±50W | 1650±50W | 2200±50W | 3300±50W | 4000±50W | 5000±50W |
Total Harmonic Distortion | ≤3% | ||||||
| Working temperature | -5～+50℃ | ||||||
| Storage temperature | -20～+70℃ | ||||||
| Cooling method | Intelligent temperature controlled air cooling | ||||||
| Mechanical properties | |||||||
| Input terminal | Terminal form | ||||||
| Output socket | According request | ||||||
| Housing material | Aluminum | ||||||
| Size(mm) | 200*173*76 | 310*173*76 | 340*173*76 | 340*173*76 | 400*242*88 | 400*242*88 | 420*242*88 |
| Weight (kg) | 2.1 | 3.2 | 3.5 | 4.5 | 8.5 | 9.5 | 10.5 |

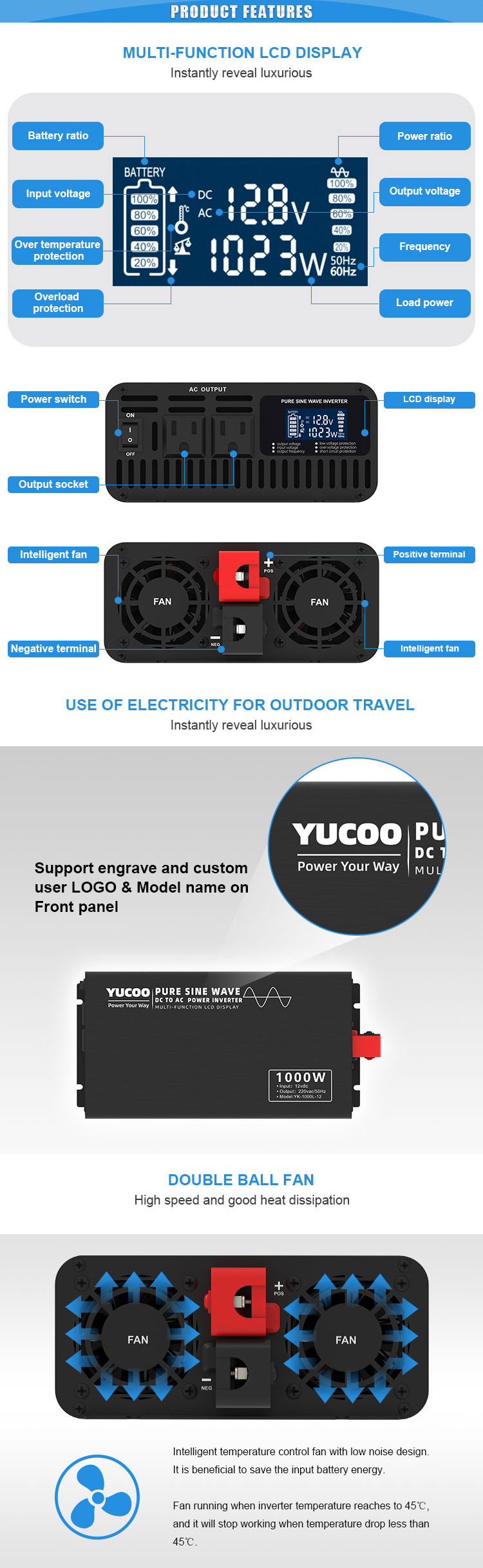

Details Images
